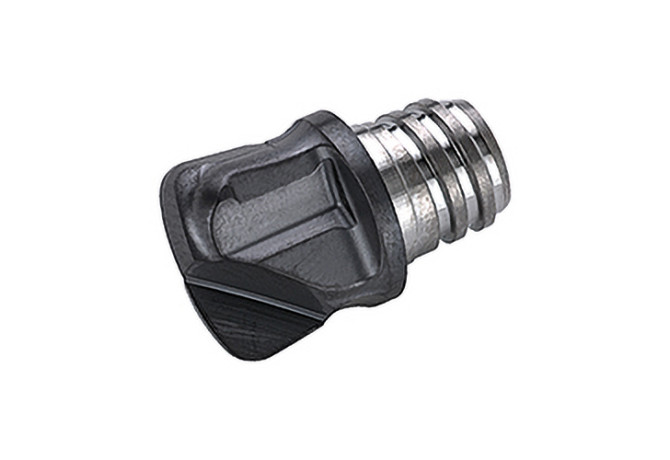

Главная Каталог продукции Toolunited 15 303-00 - End mill unspecified 45A12001T8RA25 IN2005

45A12001T8RA25 IN2005

Артикул: 5811427

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

1 mm

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

TiAIN

COMPC Company code

IL - Ingersoll

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

12 mm

DCP Data chip provision

0 - Without data chip

Delivery state

LA - Soon discontinued

DIN

SAI00800105

FamilyProducts

High feed cutter Z=2

FHA Flute helix angle

0 Degree

FHH Flute helix hand

N - Hand of helix neutral

GRD2ND Standard designation of the grade 2nd application

HC-K40

GRDMFG Grade manufacturers designation

IN2005

GRDPRIO Standard designation of the grade main application

HC-M35

HAND Cutting direction

R - Right

ID Technical product number

5811427

Interface codes

J6 /

ISYC Subclass

303-00 - End mill unspecified

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

SAI Screw mounting ISCAR

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0080

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SAI00800105

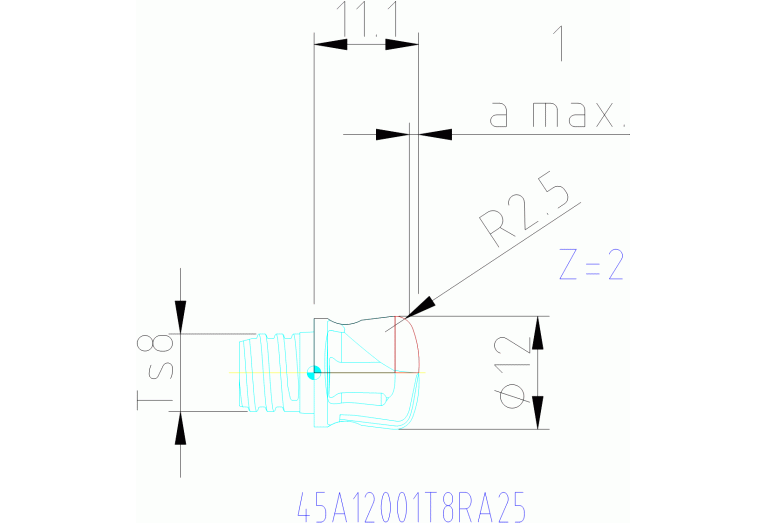

LPR Protruding length

11.1 mm

Name Identifying order number

45A12001T8RA25 IN2005

OAL Overall length

19.1 mm

PRFRAD2 Profile radius 2

2.5 mm

THSZMS Connection thread nominal size machine side

Working process

No working processes available

WT Weight of item

0.015 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
