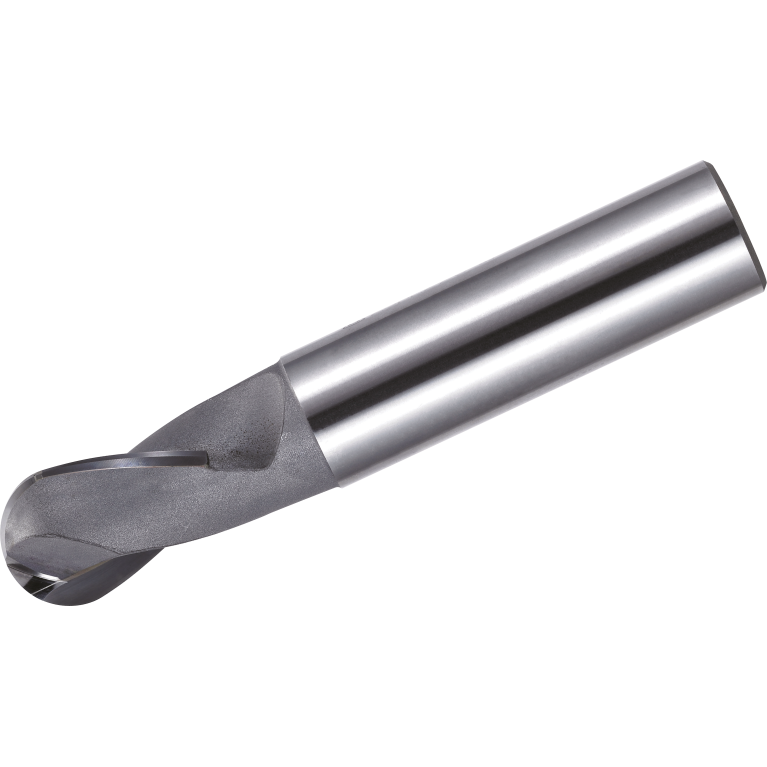

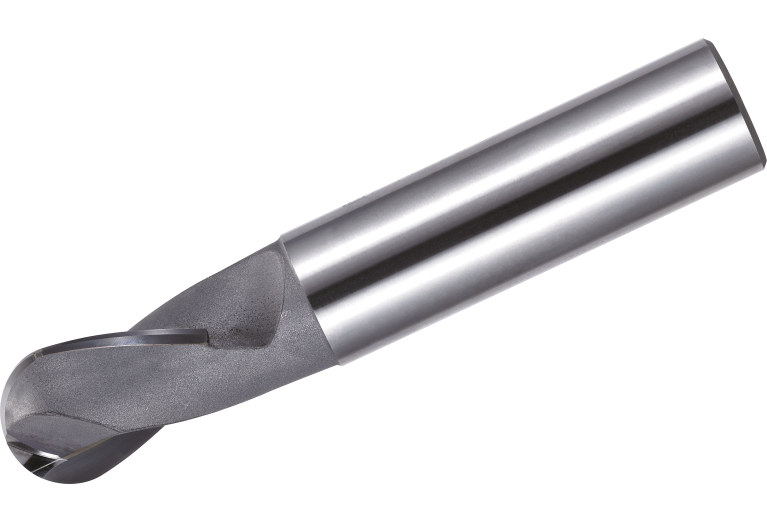

ZSBE245 FCC

Артикул: 1-04-009323

В наличии

В корзину

Описание

Характеристики

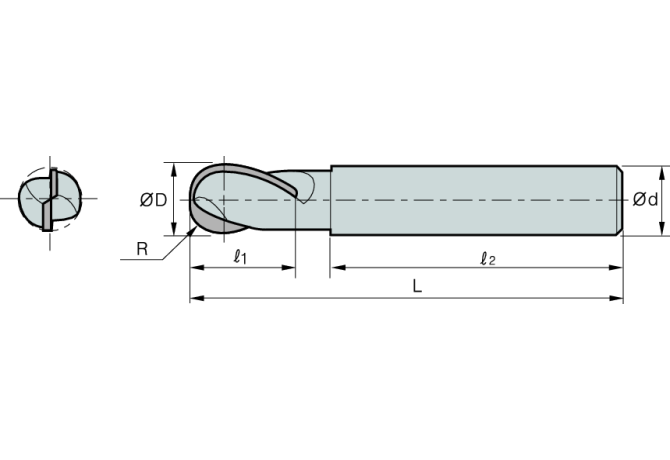

APMX Depth of cut maximum

50 mm

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

KOR - Korloy

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

45 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

6/4/2014

DIN

ZYL03200105

FamilyProducts

ZSBE200 (Ball)

FHA Flute helix angle

24 Degree

FHH Flute helix hand

R - Hand of helix right

GAMF Rake angle radial

26 Degree

GRDMFG Grade manufacturers designation

FCC

HAND Cutting direction

R - Right

ID Technical product number

1-04-009323

Interface codes

J6 /

ISYC Subclass

303-06 - Ball-nosed end mill

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CZCMS Connection size code

0320

LOC-03 DCONMS Diameter

32 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL03200105

LS Shank length

105 mm

Name Identifying order number

ZSBE245 FCC

OAL Overall length

170 mm

PRFRAD Profile radius 1

22.5 mm

Working process

No working processes available

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
