Главная Каталог продукции Toolunited 15 303-06 - Ball-nosed end mill VF4SVBR0800

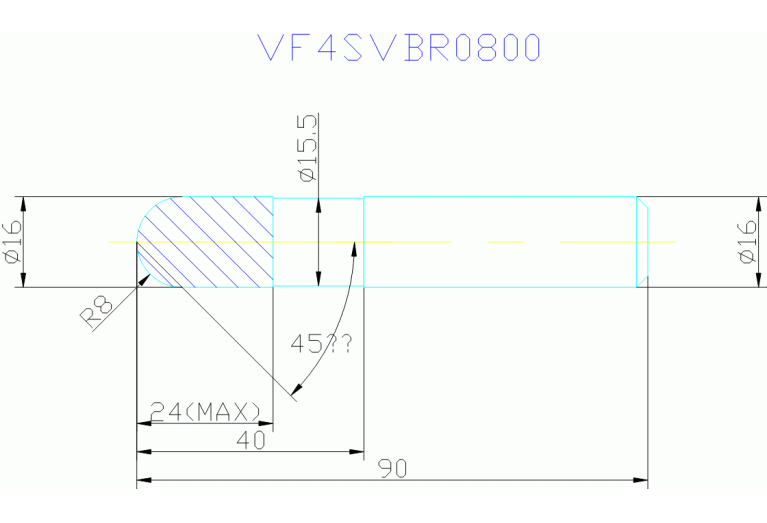

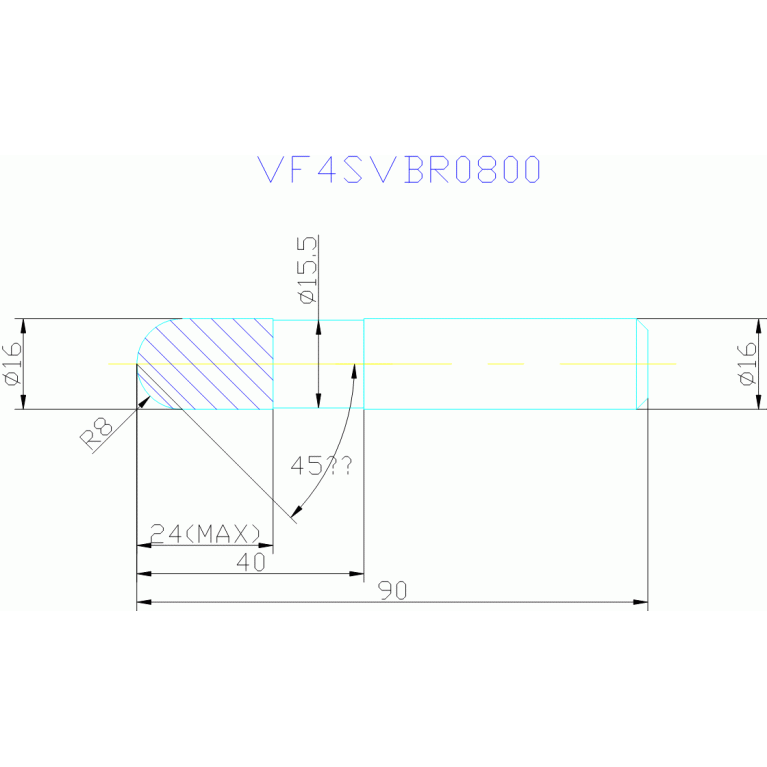

VF4SVBR0800

Артикул: 528083

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

24 mm

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

COMPC Company code

MI - Mitsubishi Materials

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

16 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

DIN

ZYL01600105

DN Neck diameter

15.5 mm

FamilyProducts

Ball nose, short, variable curve

FHA Flute helix angle

45 Degree

FHH Flute helix hand

R - Hand of helix right

HAND Cutting direction

R - Right

ID Technical product number

528083

Interface codes

J6 /

ISYC Subclass

303-06 - Ball-nosed end mill

LF Functional length

90 mm

LH Head length

40 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0160

LOC-03 DCONMS Diameter

16 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01600105

Materials

P,M,S

MILTTY Mill tool type ISO

K - Ball nose milling cutter (one or more then one indexable insert pro cutting edge)

Name Identifying order number

VF4SVBR0800

OAL Overall length

90 mm

PRFRAD Profile radius 1

8 mm

TCDCONMS ISO-tolerance class shank diameter

Working process

No working processes available

ZEFP Peripheral effective cutting edge count
