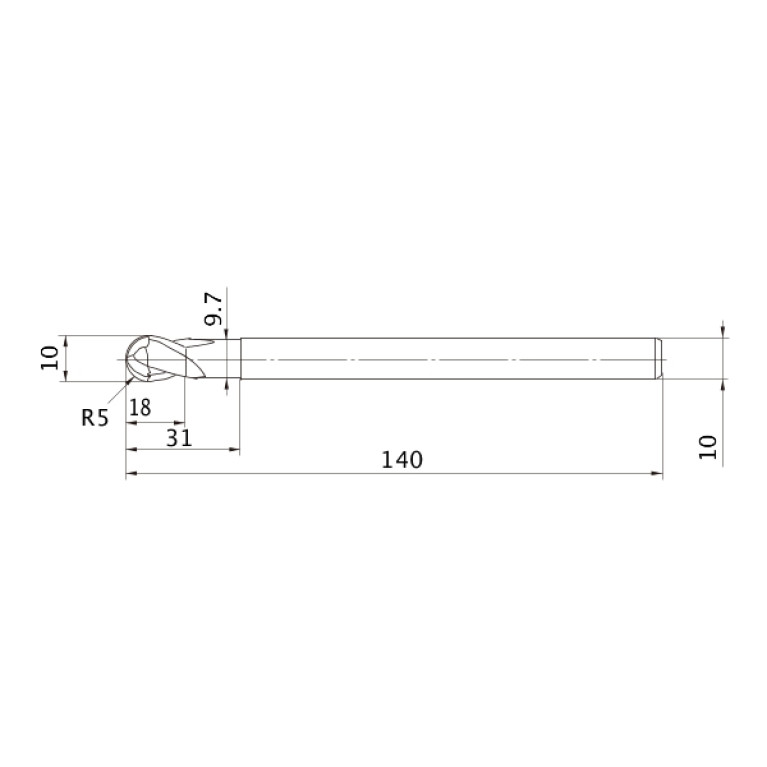

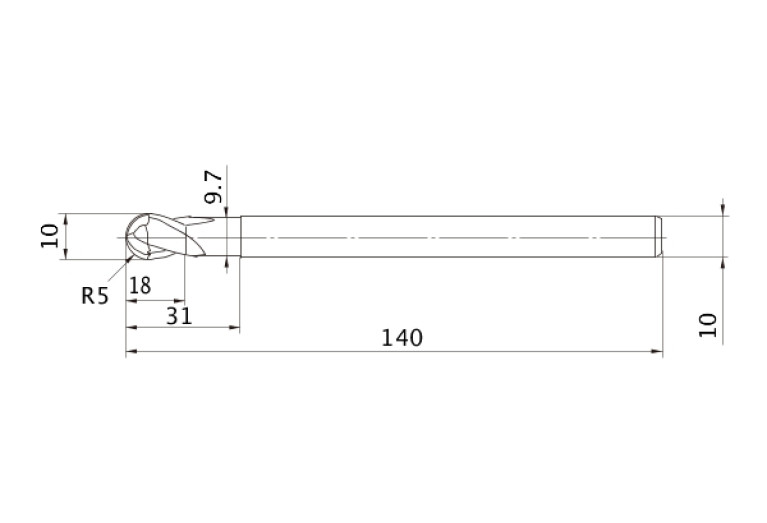

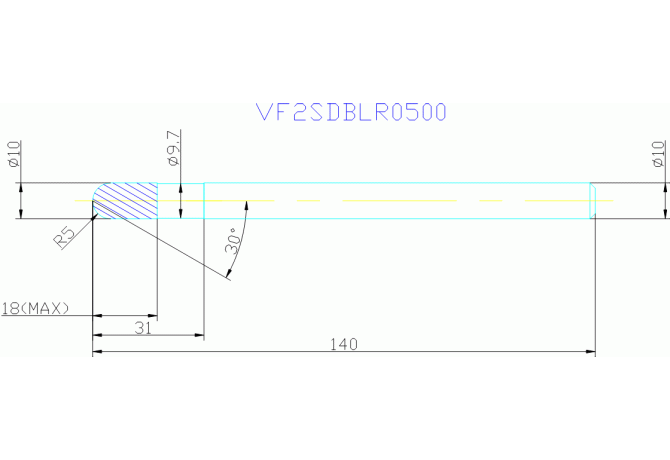

Главная Каталог продукции Toolunited 15 303-06 - Ball-nosed end mill VF2SDBLR0500

VF2SDBLR0500

Артикул: 423433

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

18 mm

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

COMPC Company code

MI - Mitsubishi Materials

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

10 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

DIN

ZYL01000105

DN Neck diameter

9.7 mm

FamilyProducts

solid end mills

FHA Flute helix angle

30 Degree

FHH Flute helix hand

R - Hand of helix right

HAND Cutting direction

R - Right

ID Technical product number

423433

Interface codes

J6 /

ISYC Subclass

303-06 - Ball-nosed end mill

LF Functional length

140 mm

LN Neck length

31 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0100

LOC-03 DCONMS Diameter

10 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01000105

LS Shank length

109 mm

Materials

P,H

MILTTY Mill tool type ISO

L - Face and side end mill with ball nose (more then one indexable insert pro cutting edge) 90°

Name Identifying order number

VF2SDBLR0500

OAL Overall length

140 mm

PRFRAD Profile radius 1

5 mm

Working process

No working processes available

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
