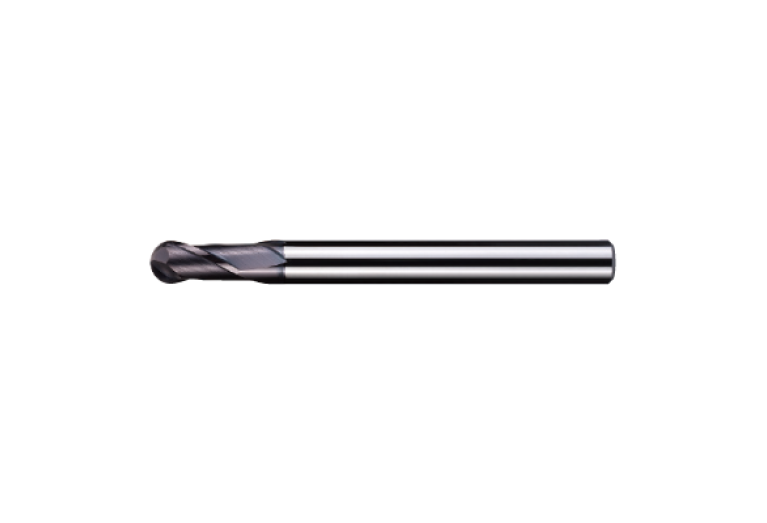

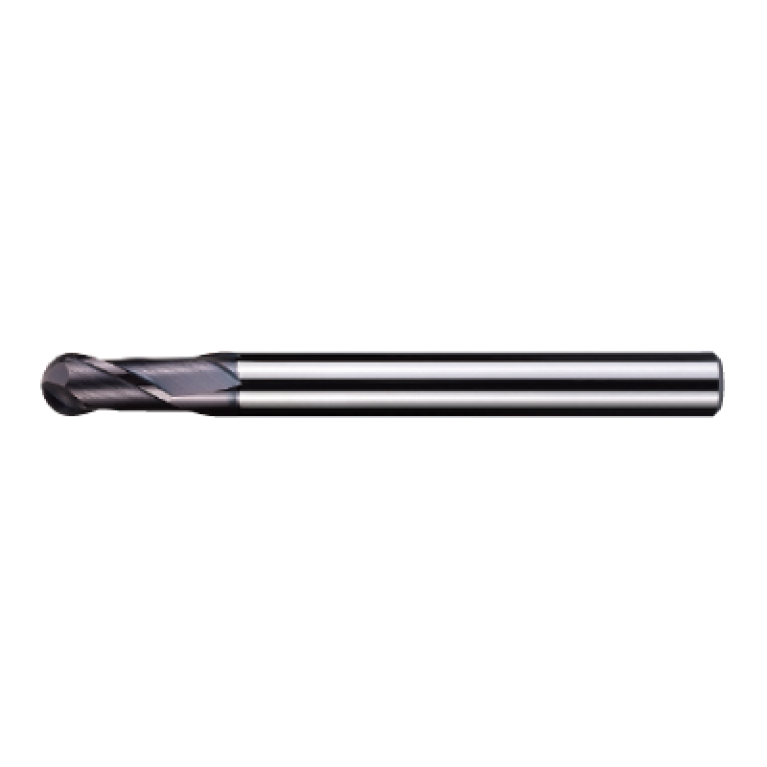

Главная Каталог продукции Toolunited 15 303-06 - Ball-nosed end mill VF2SBD5/16

VF2SBD5/16

Артикул: 613827

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

15.875 mm

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

AlTiSiN

COMPC Company code

MI - Mitsubishi Materials

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

7.938 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2024

DIN

ZYL03120125

FamilyProducts

Carbide Ball nose, Short cut length, 2 flute, For hardened materials

FHA Flute helix angle

30 Degree

FHH Flute helix hand

R - Hand of helix right

HAND Cutting direction

R - Right

ID Technical product number

613827

Interface codes

J6 / J61

ISO

ZYL01R3125h$05

ISYC Subclass

303-06 - Ball-nosed end mill

LF Functional length

101.6 mm

LH Head length

15.875 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

2 Inch

LOC-03 CZCMS Connection size code

0312

LOC-03 DCONMS Diameter

7.938 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$05

LOC-03 ISO

ZYL01R3125h$05

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL03120125

LPR Protruding length

73.025 mm

LS Shank length

85.725 mm

LU Usable length

15.875 mm

Name Identifying order number

VF2SBD5/16

OAL Overall length

101.6 mm

PRFRAD Profile radius 1

3.97 mm

TCDCONMS ISO-tolerance class shank diameter

Working process

FFO - Die milling,FPR - Profile milling

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
