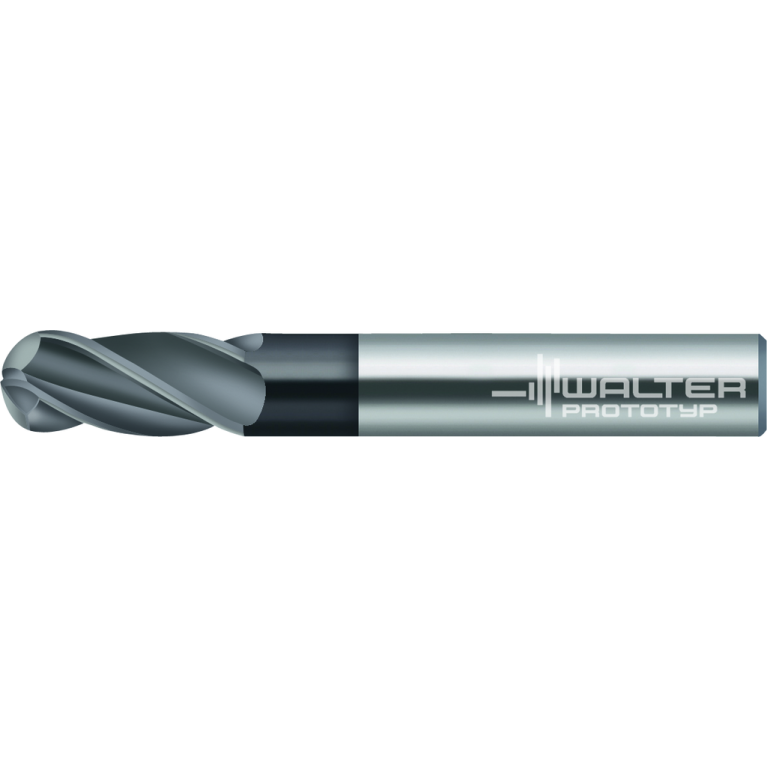

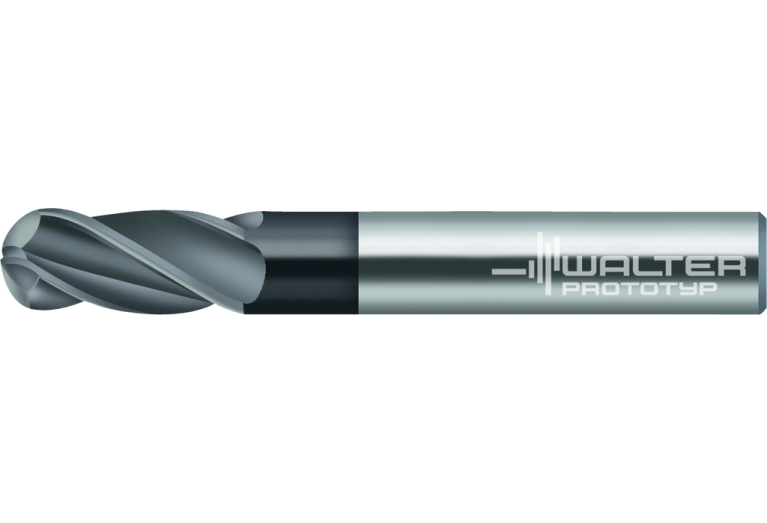

Главная Каталог продукции Toolunited 15 303-06 - Ball-nosed end mill MC416.6.35A4D-WJ30TF

MC416.6.35A4D-WJ30TF

Артикул: 6959812

В наличии

В корзину

Описание

Характеристики

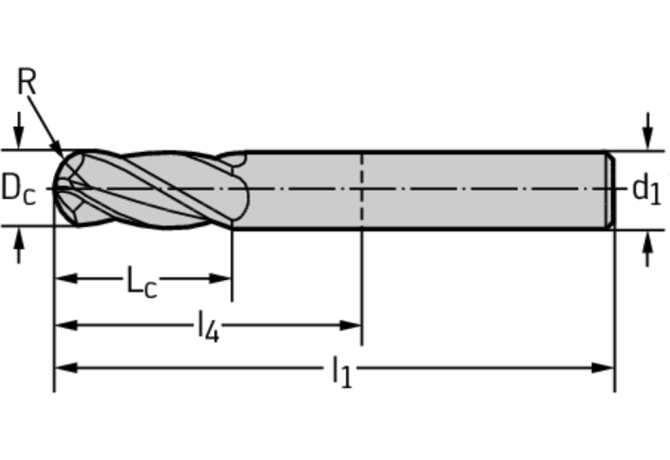

APMX Depth of cut maximum

19.05 mm

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

TiAlN

COMPC Company code

W - Walter

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

6.35 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

ZYL02500125

FamilyProducts

Solid carbide ball-nose copy milling cutters MC416

FHA Flute helix angle

30 Degree

FHH Flute helix hand

R - Hand of helix right

GAMF Rake angle radial

10.5 Degree

GAMP Rake angle axial

1.5 Degree

GRDMFG Grade manufacturers designation

WJ30TF

HAND Cutting direction

R - Right

ID Technical product number

6959812

Interface codes

J6 / J61

ISO

ZYL01R2500h$06

ISYC Subclass

303-06 - Ball-nosed end mill

LF Functional length

63.5 mm

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

ZYL cylindrical shank

LOC-03 CCUMS Unit base

2 Inch

LOC-03 CZCMS Size code

0250

LOC-03 DCONMS Diameter

6.35 mm

LOC-03 TCDCONCDMS Tolerance class coded

h$06

LOC-03 ISO

ZYL01R2500h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL02500125

LPR Protruding length

27.5 mm

LS Shank length

56 mm

Materials

P,M,K,N,S

Name Identifying order number

MC416.6.35A4D-WJ30TF

OAL Overall length

63.5 mm

PRFRAD Profile radius 1

3.175 mm

RMPX Ramping angle maximum

15 Degree

RPMX Rotational speed maximum

105948 1/min

STDNO Standard

STANDARD

TCDCONMS ISO-tolerance class shank diameter

Working process

FEC - Square shoulder milling,FFO - Die milling,FSE - Counter-sinking

WT Weight of item

0.031 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
