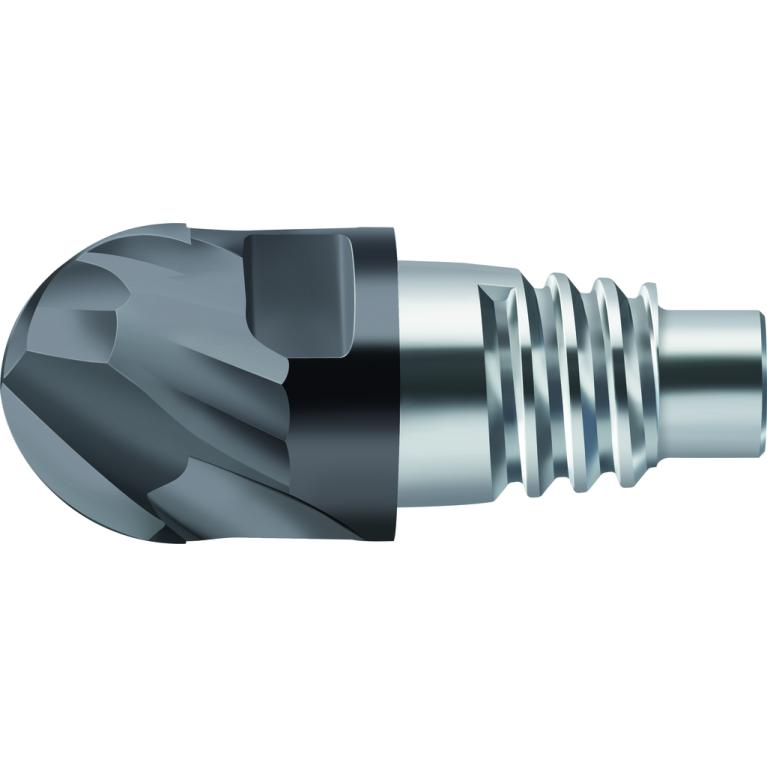

Главная Каталог продукции Toolunited 15 303-06 - Ball-nosed end mill H8E01118-E12-12

H8E01118-E12-12

Артикул: 5927034

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

6.5 mm

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

TiAlN

COMPC Company code

W - Walter

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

12 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

SAC01200405

DN Neck diameter

11.7 mm

FamilyProducts

Solid carbide ball-nose copy milling cutters H8E01118

FHA Flute helix angle

40 Degree

FHH Flute helix hand

R - Hand of helix right

GAMF Rake angle radial

10.5 Degree

GAMP Rake angle axial

1.5 Degree

GRDMFG Grade manufacturers designation

TAX

HAND Cutting direction

R - Right

ID Technical product number

5927034

Interface codes

J6 / J61

ISO

SAC04A0120$$$$

ISYC Subclass

303-06 - Ball-nosed end mill

LF Functional length

14.5 mm

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

SAC Screw mounting SANDVIK Coromant

LOC-03 CCUMS Unit base

0 Metric

LOC-03 CZCMS Size code

0120

LOC-03 DCONMS Diameter

11.7 mm

LOC-03 ISO

SAC04A0120$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SAC01200405

LPR Protruding length

14.5 mm

Materials

P,M,K,N

Name Identifying order number

H8E01118-E12-12

OAL Overall length

28.3 mm

PRFRAD Profile radius 1

6 mm

RMPX Ramping angle maximum

15 Degree

RPMX Rotational speed maximum

999999 1/min

STDNO Standard

PWZ-NORM

Working process

FEC - Square shoulder milling,FFO - Die milling,FSE - Counter-sinking

WT Weight of item

0.028 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
