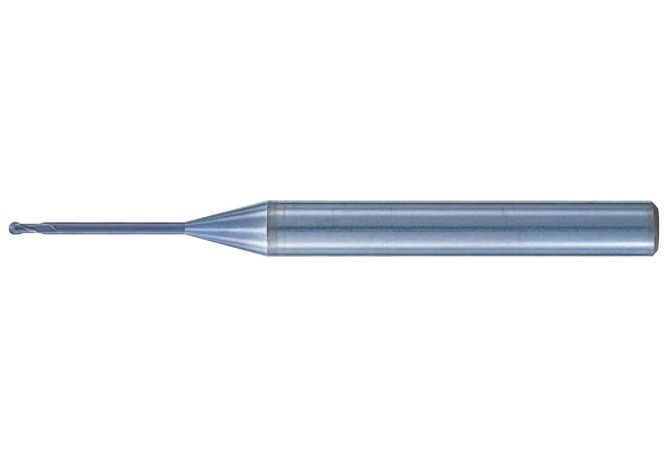

Главная Каталог продукции Toolunited 15 303-06 - Ball-nosed end mill GSBN2 0050 0804

GSBN2 0050 0804

Артикул: GSBN2 0050 0804

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

1.5 mm

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

SU - Sumitomo

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

1 mm

DCONMSLD Shank diameter lower limit

-0.005 mm

DCONMSUD Shank diameter upper limit

0 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

3/21/2012

DIN

ZYL00400105

DN Neck diameter

0.96 mm

FamilyProducts

GS MILL Long Neck Ballnose endmill GSBN 2 Type

FHA Flute helix angle

30 Degree

FHH Flute helix hand

R - Hand of helix right

GAMF Rake angle radial

1 Degree

GRDMFG Grade manufacturers designation

ACZ20W

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

303-06 - Ball-nosed end mill

LH Head length

8 mm

LN Neck length

8 mm

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

ZYL cylindrical shank

LOC-03 CCUMS Unit base

0 Metric

LOC-03 CZCMS Size code

0040

LOC-03 DCONMS Diameter

4 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00400105

MILTTY Mill tool type ISO

K - Ball nose milling cutter (one or more then one indexable insert pro cutting edge)

Name Identifying order number

GSBN2 0050 0804

OAL Overall length

45 mm

PRFRAD Profile radius 1

0.5 mm

Working process

FEC - Square shoulder milling,FFO - Die milling,FNU - Groove milling

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count

ZNC Cutting edge centre count
