Главная Каталог продукции Toolunited 15 303-06 - Ball-nosed end mill F4AL0400BDL30 KC633M

F4AL0400BDL30 KC633M

Артикул: 1723085

В наличии

В корзину

Описание

Характеристики

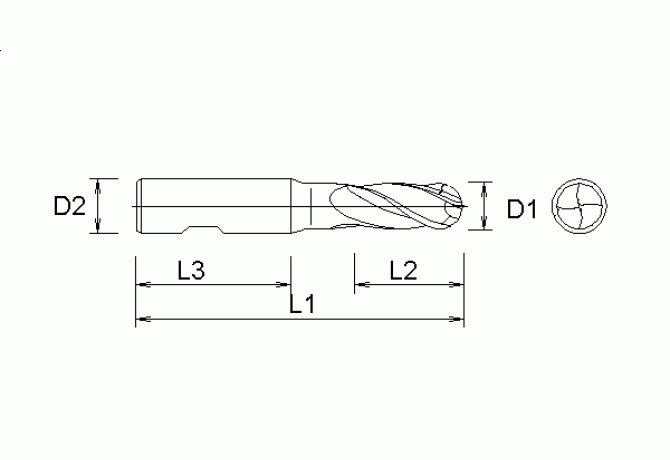

APMX Depth of cut maximum

8 mm

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

KH - Kennametal

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

4 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

1/4/2011

DIN

ZYL00601005

FamilyProducts

SC BALL NOSE MILL B

FHA Flute helix angle

30 Degree

GRD2ND Standard designation of the grade 2nd application

HC-M30

GRD3RD Standard designation of the grade 3rd application

HC-M20

GRDMFG Grade manufacturers designation

KC633M

GRDPRIO Standard designation of the grade main application

HC-P30

ID Technical product number

1723085

Interface codes

J6 / J61

ISO

ZYL10F6000$$$$

ISYC Subclass

303-06 - Ball-nosed end mill

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0060

LOC-03 DCONMS Diameter

6 mm

LOC-03 ISO

ZYL10F6000$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00601005

LPR Protruding length

18 mm

LS Shank length

36 mm

MILTTY Mill tool type ISO

L - Face and side end mill with ball nose (more then one indexable insert pro cutting edge) 90°

Name Identifying order number

F4AL0400BDL30 KC633M

OAL Overall length

54 mm

STDNO Standard

DIN6527

Working process

No working processes available

ZEFP Peripheral effective cutting edge count
