Главная Каталог продукции Toolunited 15 303-06 - Ball-nosed end mill F2AT0300AWM20R005 K600

F2AT0300AWM20R005 K600

F2AT0300AWM20R005 K600 F2AT0300AWM20R005 K600

F2AT0300AWM20R005 K600

Kennametal
Артикул: F2AT0300AWM20R005K600
В наличии
В корзину
Описание
Характеристики

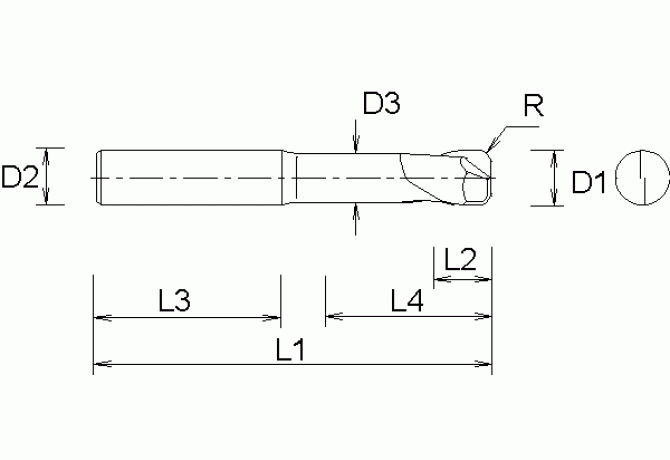

APMX Depth of cut maximum
3 mm
BMC Body material code
H - Solid carbide
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
KH - Kennametal
CXSC Coolant exit style code
0 - Without coolant exit
DC Cutting diameter
3 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
1/4/2011
DIN
ZYL00600105
DN Neck diameter
2.5 mm
FamilyProducts
SC RADIUSED MILL A
FHA Flute helix angle
20 Degree
FHH Flute helix hand
R - Hand of helix right
GAMF Rake angle radial
20 Degree
GAMP Rake angle axial
0 Degree
GRDMFG Grade manufacturers designation
K600
HAND Cutting direction
R - Right
ID Technical product number
F2AT0300AWM20R005K600
Interface codes
J6 / J61
ISO
ZYL01F6000$$$$
ISYC Subclass
303-06 - Ball-nosed end mill
LH Head length
18 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0060
LOC-03 DCONMS Diameter
6 mm
LOC-03 ISO
ZYL01F6000$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00600105
LPR Protruding length
34 mm
LS Shank length
36 mm
Name Identifying order number
F2AT0300AWM20R005 K600
OAL Overall length
70 mm
Working process
No working processes available
ZEFF Face effective cutting edge count
2
ZEFP Peripheral effective cutting edge count
2
ZNC Cutting edge centre count
2
