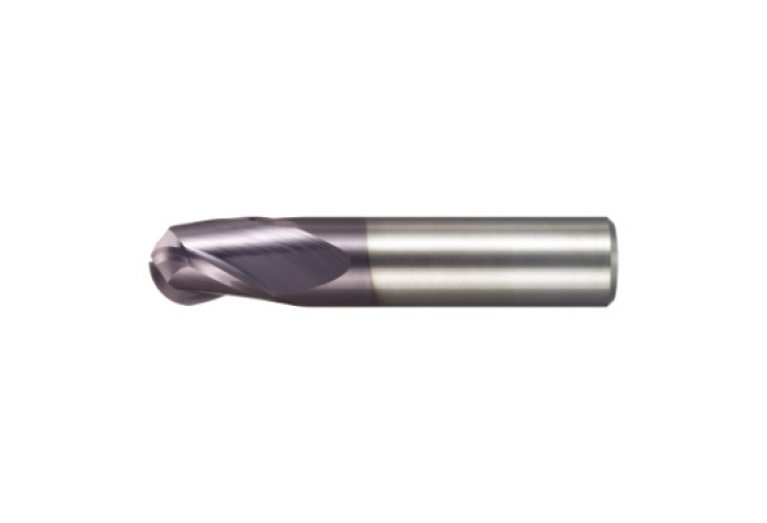

Главная Каталог продукции Toolunited 15 303-06 - Ball-nosed end mill DS3SBD5/16

DS3SBD5/16

Артикул: 246941

В наличии

В корзину

Описание

Характеристики

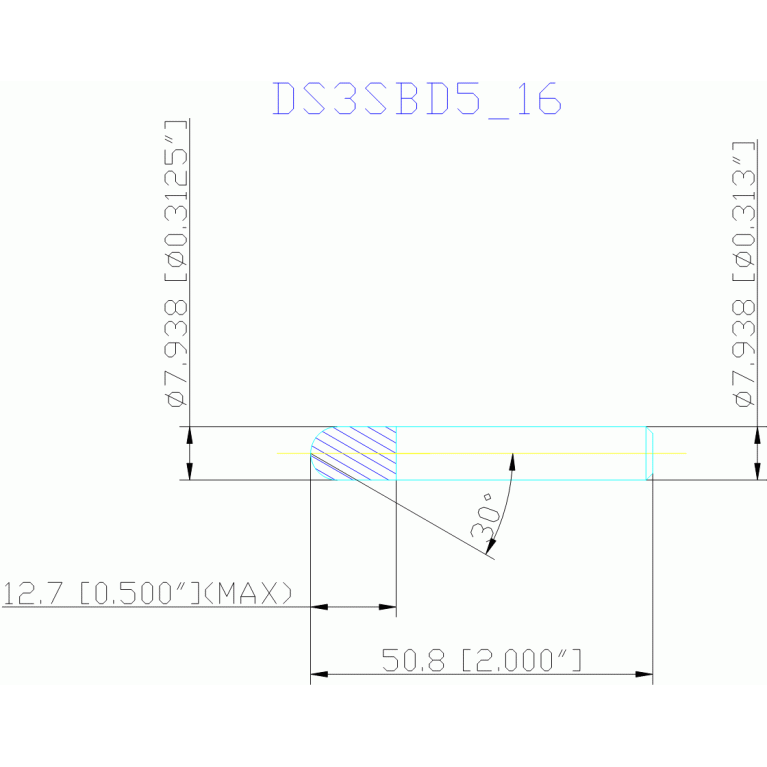

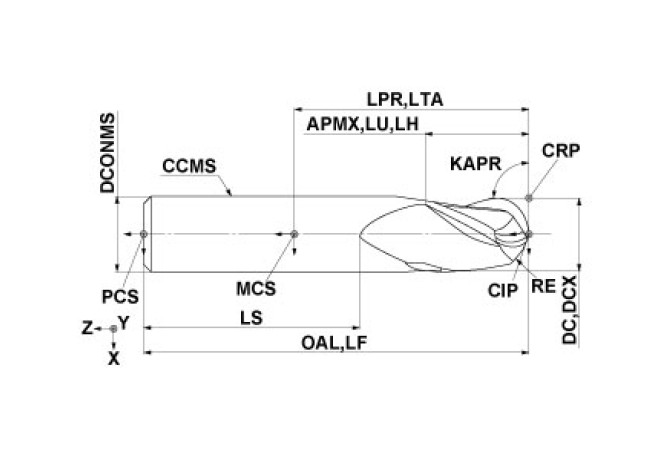

APMX Depth of cut maximum

12.7 mm

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

COMPC Company code

MI - Mitsubishi Materials

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

7.9375 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

DIN

ZYL03130125

FamilyProducts

DS3SB INCH

FHA Flute helix angle

30 Degree

FHH Flute helix hand

R - Hand of helix right

GAMF Rake angle radial

30 Degree

HAND Cutting direction

R - Right

ID Technical product number

246941

Interface codes

J6 /

ISYC Subclass

303-06 - Ball-nosed end mill

LF Functional length

50.8 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

2 Inch

LOC-03 CZCMS Connection size code

0313

LOC-03 DCONMS Diameter

7.9502 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL03130125

Name Identifying order number

DS3SBD5/16

OAL Overall length

50.8 mm

PRFRAD Profile radius 1

3.97002 mm

Working process

No working processes available

ZEFP Peripheral effective cutting edge count

ZNC Cutting edge centre count
