Главная Каталог продукции Toolunited 15 303-06 - Ball-nosed end mill CRN2XLBR0150N250S06

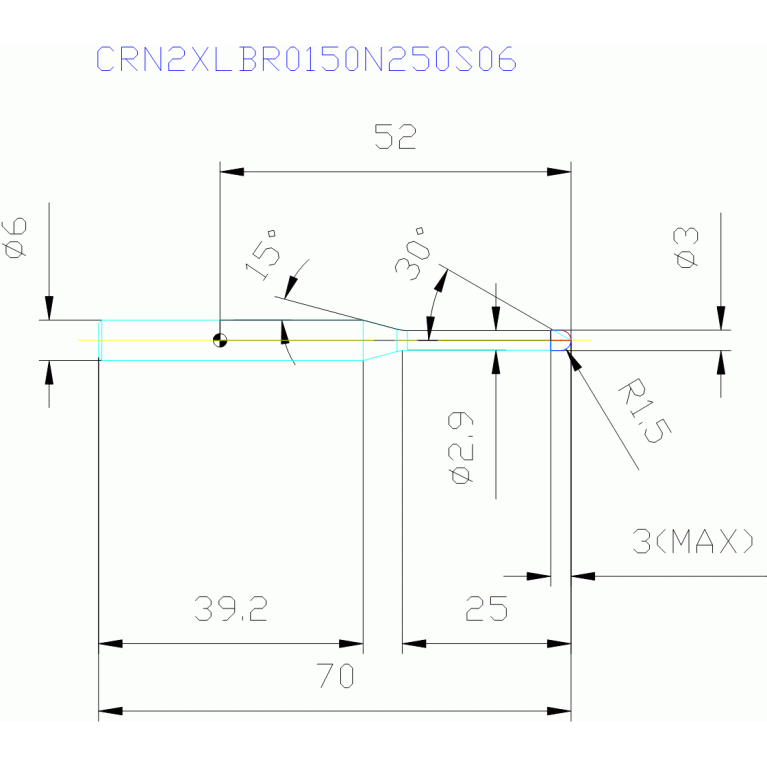

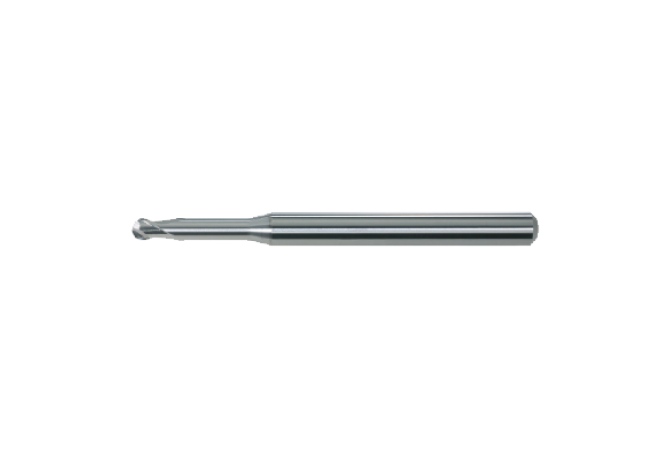

CRN2XLBR0150N250S06

CRN2XLBR0150N250S06 CRN2XLBR0150N250S06 CRN2XLBR0150N250S06 CRN2XLBR0150N250S06

CRN2XLBR0150N250S06

Mitsubishi Materials
Артикул: 10220870
В наличии
В корзину
Описание
Характеристики

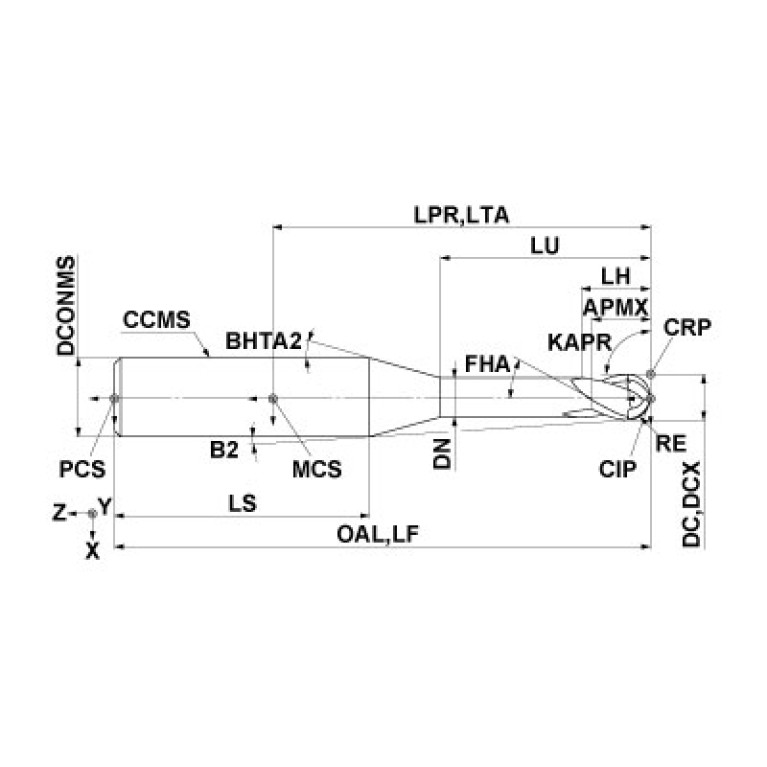

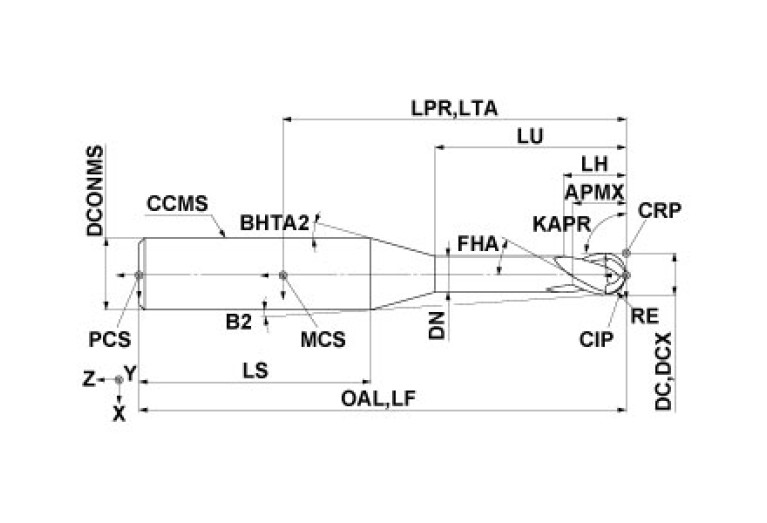

APMX Depth of cut maximum
3 mm
BMC Body material code
H - Solid carbide
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating / Покрытие
CrN
COMPC Company code
MI - Mitsubishi Materials
CXSC Coolant exit style code
0 - Without coolant exit
DC Cutting diameter
3 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2024
DIN
ZYL00600105
DN Neck diameter
2.9 mm
FamilyProducts
Carbide Ball nose, Long neck, 2 flute, For copper electrodes
FHA Flute helix angle
30 Degree
FHH Flute helix hand
R - Hand of helix right
HAND Cutting direction
R - Right
ID Technical product number
10220870
Interface codes
J6 / J61
ISO
ZYL01F6000h$06
ISYC Subclass
303-06 - Ball-nosed end mill
LF Functional length
70 mm
LH Head length
3.05 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0060
LOC-03 DCONMS Diameter
6 mm
LOC-03 TCDCONCDMS Connection tolerance class coded
h$06
LOC-03 ISO
ZYL01F6000h$06
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00600105
LPR Protruding length
52 mm
LS Shank length
39.2 mm
LU Usable length
25 mm
Name Identifying order number
CRN2XLBR0150N250S06
OAL Overall length
70 mm
PRFRAD Profile radius 1
1.5 mm
TCDCONMS ISO-tolerance class shank diameter
h6
Working process
FFO - Die milling,FPR - Profile milling
ZEFF Face effective cutting edge count
2
ZEFP Peripheral effective cutting edge count
2
