Главная Каталог продукции Toolunited 15 303-06 - Ball-nosed end mill C2MBR0650

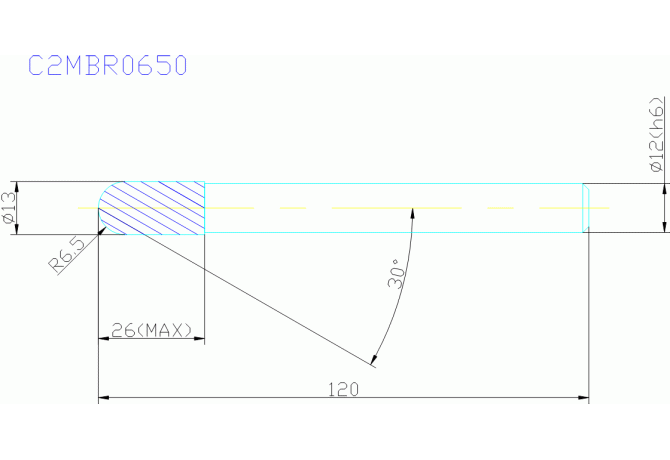

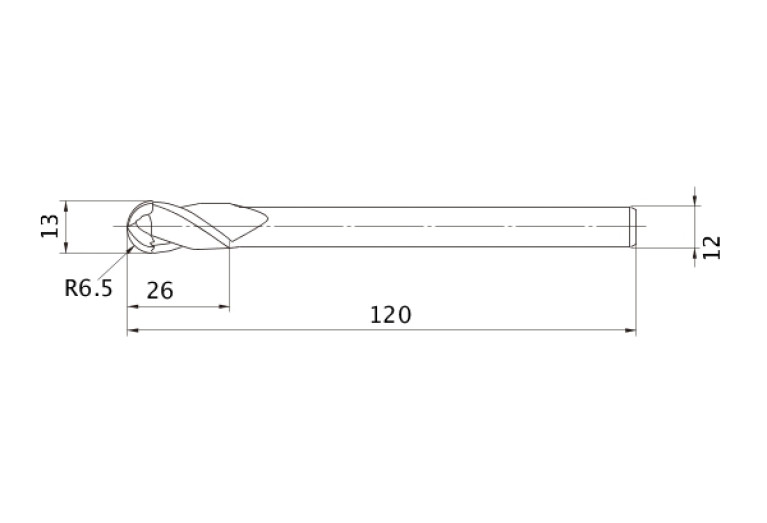

C2MBR0650

Артикул: 10318584

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

26 mm

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

MI - Mitsubishi Materials

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

13 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

DIN

ZYL01200105

FamilyProducts

Carbide end mill C2MB

FHA Flute helix angle

30 Degree

FHH Flute helix hand

R - Hand of helix right

HAND Cutting direction

R - Right

ID Technical product number

10318584

Interface codes

J6 /

ISYC Subclass

303-06 - Ball-nosed end mill

LF Functional length

120 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0120

LOC-03 DCONMS Diameter

12 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01200105

MILTTY Mill tool type ISO

K - Ball nose milling cutter (one or more then one indexable insert pro cutting edge)

Name Identifying order number

C2MBR0650

OAL Overall length

120 mm

PRFRAD Profile radius 1

6.5 mm

TCDCONMS ISO-tolerance class shank diameter

Working process

No working processes available

ZEFP Peripheral effective cutting edge count
