Главная Каталог продукции Toolunited 15 303-06 - Ball-nosed end mill AM2MBR0400A075

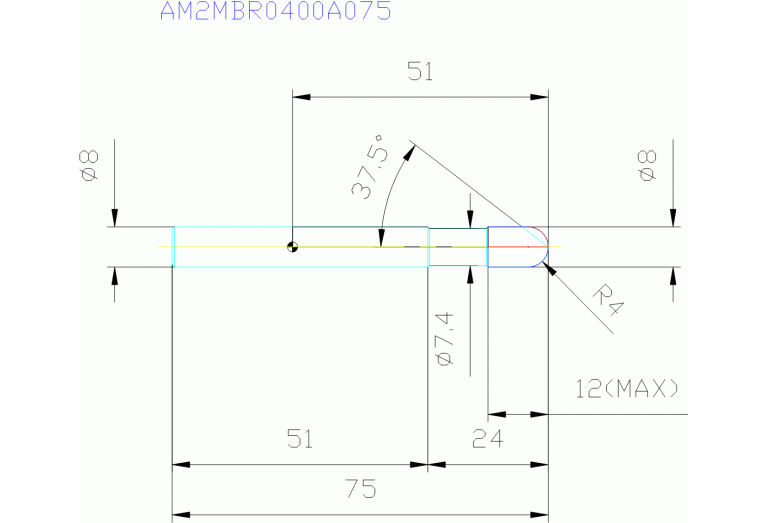

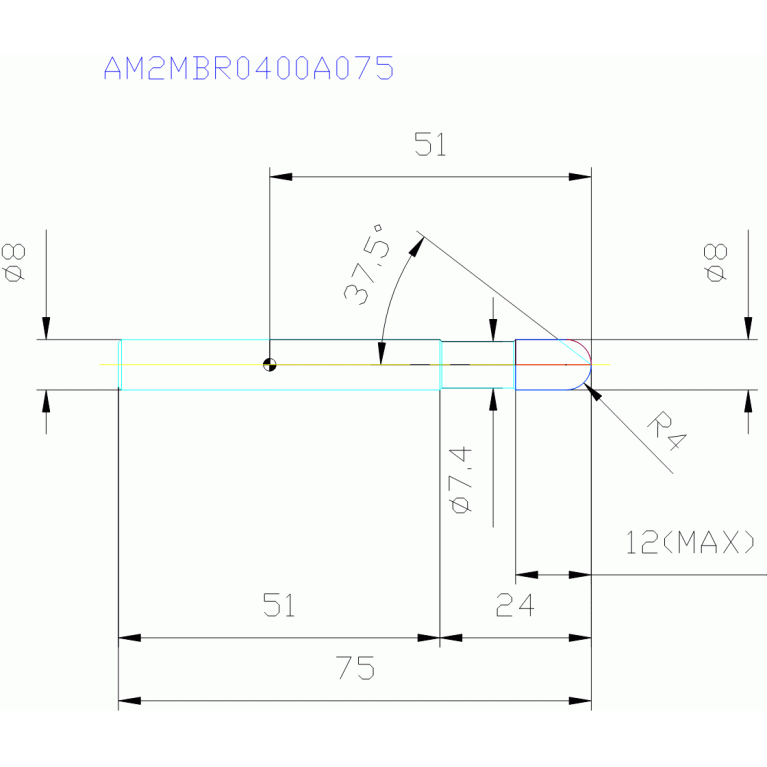

AM2MBR0400A075

Артикул: 11003106

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

12 mm

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

MI - Mitsubishi Materials

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

8 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2024

DIN

ZYL00800105

DN Neck diameter

7.4 mm

FamilyProducts

Carbide Ball nose end mill, 2 flute, Medium cut length, Relieved neck

FHA Flute helix angle

37.5 Degree

FHH Flute helix hand

R - Hand of helix right

HAND Cutting direction

R - Right

ID Technical product number

11003106

Interface codes

J6 / J61

ISO

ZYL01F8000$$$$

ISYC Subclass

303-06 - Ball-nosed end mill

LF Functional length

75 mm

LH Head length

12.3 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0080

LOC-03 DCONMS Diameter

8 mm

LOC-03 ISO

ZYL01F8000$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00800105

LPR Protruding length

51 mm

LS Shank length

51 mm

LU Usable length

24 mm

Name Identifying order number

AM2MBR0400A075

OAL Overall length

75 mm

PRFRAD Profile radius 1

4 mm

Working process

FFO - Die milling,FPR - Profile milling

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
