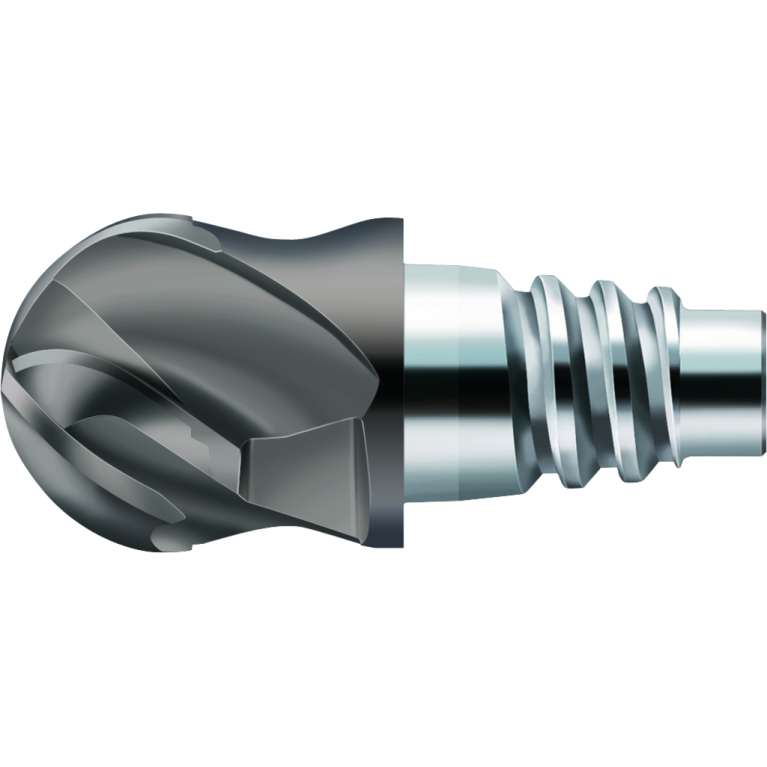

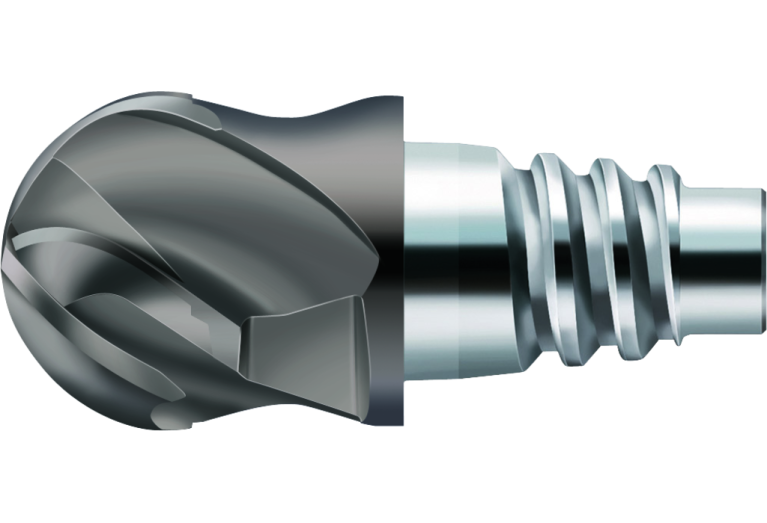

AH8E11118-E20-3/4

Артикул: 5832146

В наличии

В корзину

Описание

Характеристики

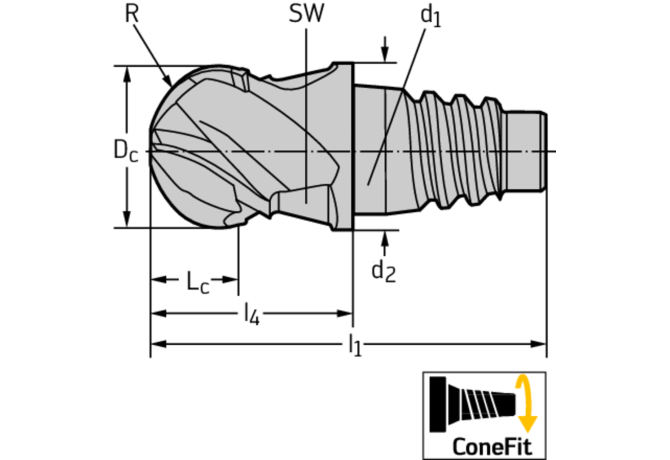

APMX Depth of cut maximum

10.5 mm

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

TiAlN

COMPC Company code

W - Walter

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

19.05 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

SAC02000405

DN Neck diameter

18.5 mm

FamilyProducts

Solid carbide ball-nose copy milling cutters AH8E11118

FHA Flute helix angle

40 Degree

FHH Flute helix hand

R - Hand of helix right

GAMF Rake angle radial

10.5 Degree

GAMP Rake angle axial

1.5 Degree

GRDMFG Grade manufacturers designation

TAX

HAND Cutting direction

R - Right

ID Technical product number

5832146

Interface codes

J6 / J61

ISO

SAC04B0200$$$$

ISYC Subclass

303-06 - Ball-nosed end mill

LF Functional length

21.3 mm

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

SAC Screw mounting SANDVIK Coromant

LOC-03 CCUMS Unit base

0 Metric

LOC-03 CZCMS Size code

0200

LOC-03 DCONMS Diameter

18.5 mm

LOC-03 ISO

SAC04B0200$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SAC02000405

LPR Protruding length

21.3 mm

Materials

P,M,K,N

Name Identifying order number

AH8E11118-E20-3/4

OAL Overall length

40.8 mm

PRFRAD Profile radius 1

9.525 mm

RMPX Ramping angle maximum

15 Degree

RPMX Rotational speed maximum

523088 1/min

STDNO Standard

PWZ-NORM

Working process

FEC - Square shoulder milling,FFO - Die milling,FSE - Counter-sinking

WT Weight of item

0.11 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
