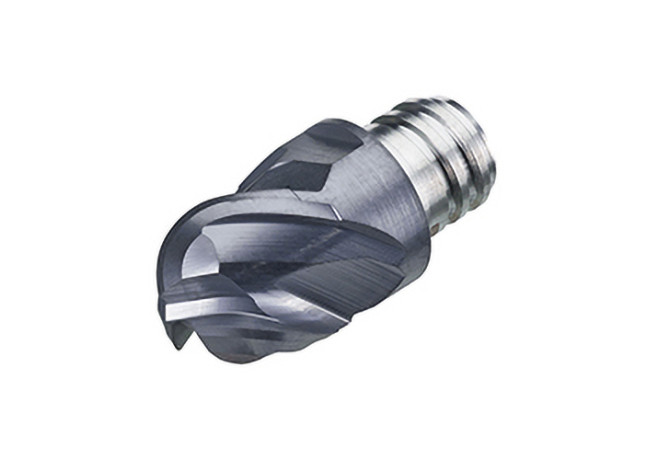

Главная Каталог продукции Toolunited 15 303-06 - Ball-nosed end mill 46B08005TQRB10 IN2005

46B08005TQRB10 IN2005

Артикул: 5884166

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

5 mm

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

TiAIN

COMPC Company code

IL - Ingersoll

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

8 mm

DCP Data chip provision

0 - Without data chip

Delivery state

LA - Soon discontinued

DIN

SAI00500105

FamilyProducts

High precision ball nose Z=3

FHA Flute helix angle

30 Degree

FHH Flute helix hand

R - Hand of helix right

GRD2ND Standard designation of the grade 2nd application

HC-K40

GRDMFG Grade manufacturers designation

IN2005

GRDPRIO Standard designation of the grade main application

HC-M35

HAND Cutting direction

R - Right

ID Technical product number

5884166

Interface codes

J6 /

ISYC Subclass

303-06 - Ball-nosed end mill

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

SAI Screw mounting ISCAR

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0050

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SAI00500105

Name Identifying order number

46B08005TQRB10 IN2005

OAL Overall length

22.1 mm

PRFRAD Profile radius 1

4 mm

THSZMS Connection thread nominal size machine side

Working process

No working processes available

WT Weight of item

0.005 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
