Главная Каталог продукции Toolunited 15 303-03 - Angular end mill (V-groove) MM HCF100-060-2T06 IC908

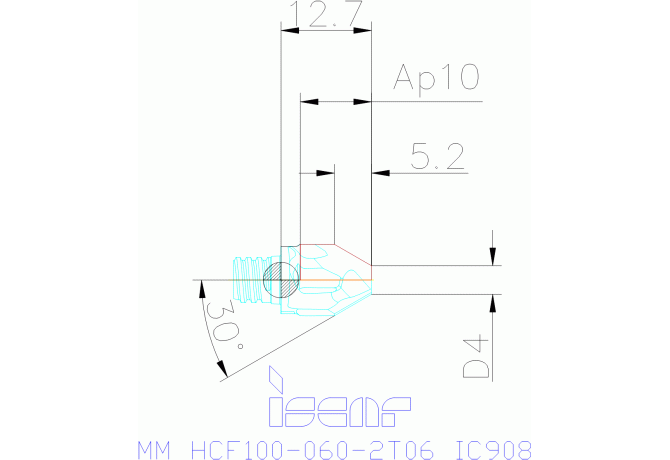

MM HCF100-060-2T06 IC908

Артикул: 5604525

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

5 mm

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

TiAlN

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

4 mm

DCP Data chip provision

0 - Without data chip

DCX Cutting diameter maximum

10 mm

DIN

SAI00600185

DN Neck diameter

9.5 mm

F71 Number of corner designs

FamilyProducts

Interchangeable 2 flute, solid carbide chamfering head with a MULTI-MASTER adaptation.

FHH Flute helix hand

R - Hand of helix right

GRDMFG Grade manufacturers designation

IC908

HAND Cutting direction

R - Right

ID Technical product number

5604525

Interface codes

J6 / J61

ISO

SAI01C0060$$$$

ISYC Subclass

303-03 - Angular end mill (V-groove)

KAPR Tool cutting edge angle

30 Degree

LF Functional length

10 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

SAI Screw mounting ISCAR

LOC-03 CCUMS Connection code unit base

8 non-dimensional size

LOC-03 CZCMS Connection size code

0060

LOC-03 ISO

SAI01C0060$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SAI00600185

Name Identifying order number

MM HCF100-060-2T06 IC908

OAL Overall length

12.7 mm

THSZMS Connection thread nominal size machine side

T06

Working process

No working processes available

WT Weight of item

0.01 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
