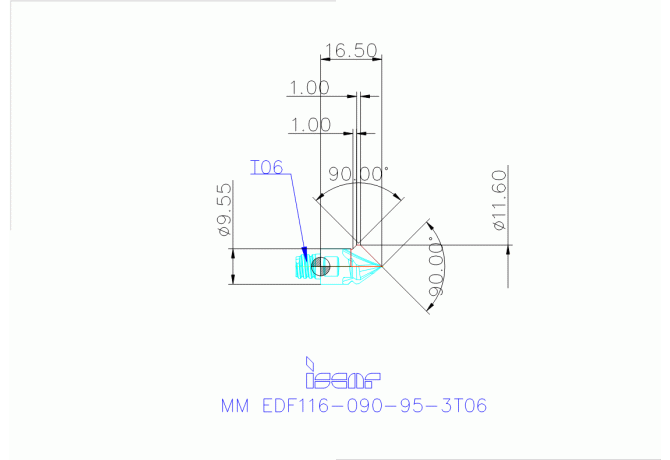

MM EDF116-090-95-3T06 IC908

Артикул: 5697518

В наличии

В корзину

Описание

Характеристики

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

TiAlN

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

11.6 mm

DCP Data chip provision

0 - Without data chip

DIN

SAI00600185

FamilyProducts

Interchangeable 3 Flute Solid Carbide Heads for Upper and Bottom Chamfering

FHH Flute helix hand

R - Hand of helix right

GRDMFG Grade manufacturers designation

IC908

HAND Cutting direction

R - Right

ID Technical product number

5697518

Interface codes

J6 / J61

ISO

SAI01C0060$$$$

ISYC Subclass

303-10 - Cutting stylus

LF Functional length

16.5 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

SAI Screw mounting ISCAR

LOC-03 CCUMS Connection code unit base

8 non-dimensional size

LOC-03 CZCMS Connection size code

0060

LOC-03 DCONMS Diameter

9.6 mm

LOC-03 ISO

SAI01C0060$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SAI00600185

Name Identifying order number

MM EDF116-090-95-3T06 IC908

PRFA Profile included angle

90 Degree

THSZMS Connection thread nominal size machine side

T06

Working process

No working processes available

WT Weight of item

0.01 kg

ZEFF Face effective cutting edge count
