Главная Каталог продукции Toolunited 15 303-01 - Non-centre cutting end mill SHM121-5000Z04R-R0400A8-PU622

SHM121-5000Z04R-R0400A8-PU622

SHM121-5000Z04R-R0400A8-PU622 SHM121-5000Z04R-R0400A8-PU622

SHM121-5000Z04R-R0400A8-PU622

Mapal
Артикул: 30625820
В наличии
В корзину
Описание
Характеристики

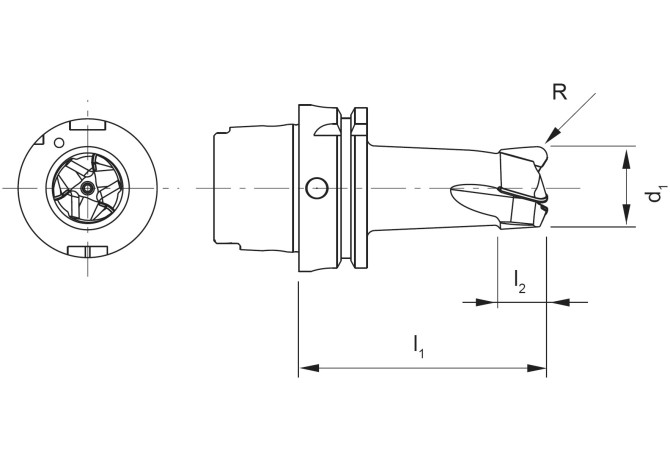

APMX Depth of cut maximum
20 mm
BMC Body material code
D - Solid steel with soldered hard-alloy inserts (BN or DP)
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
MP - Mapal
CXSC Coolant exit style code
0 - Without coolant exit
DC Cutting diameter
50 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
1/10/2017
DIN
HSK08000185
F71 Number of corner designs
1
FamilyProducts
SHM12 OptiMill-Diamond-SPM
FHA Flute helix angle
15 Degree
FHH Flute helix hand
R - Hand of helix right
GAMF Rake angle radial
17 Degree
GRDMFG Grade manufacturers designation
PU622
HAND Cutting direction
R - Right
ID Technical product number
30625820
Interface codes
J6 /
ISYC Subclass
303-01 - Non-centre cutting end mill
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
HSK Hollow taper shank
LOC-03 CCUMS Connection code unit base
8 non-dimensional size
LOC-03 CZCMS Connection size code
0800
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
HSK08000185
LPR Protruding length
109 mm
Name Identifying order number
SHM121-5000Z04R-R0400A8-PU622
RE Corner radius
4 mm
Working process
No working processes available
ZEFF Face effective cutting edge count
4
ZEFP Peripheral effective cutting edge count
4
