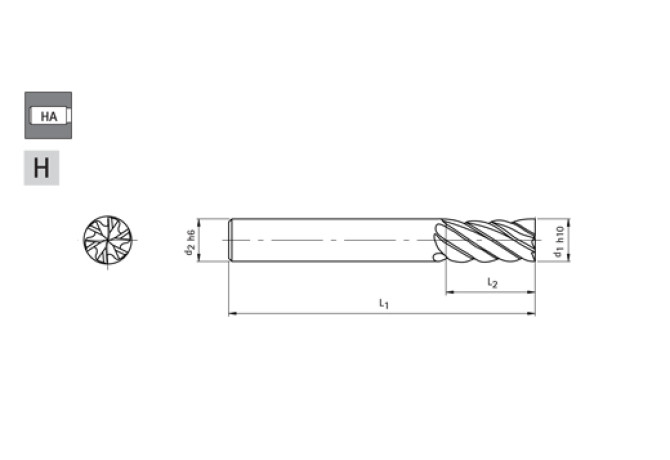

SCM310-1200Z06R-S-HA-HP214

Артикул: 30393493

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

26 mm

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

TiAlN-Beschichtung

COMPC Company code

MP - Mapal

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

12 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

7/2/2012

DIN

ZYL01200105

F71 Number of corner designs

FamilyProducts

OptiMill-Hardened endmill SCM31

FHA Flute helix angle

50 Degree

FHH Flute helix hand

R - Hand of helix right

GRDMFG Grade manufacturers designation

HP214

HAND Cutting direction

R - Right

ID Technical product number

30393493

Interface codes

J6 /

ISYC Subclass

303-01 - Non-centre cutting end mill

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0120

LOC-03 DCONMS Diameter

12 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01200105

MILTTY Mill tool type ISO

G - Side end mill (one or more indexable insert pro cutting edge) 90°

Name Identifying order number

SCM310-1200Z06R-S-HA-HP214

OAL Overall length

83 mm

STDNO Standard

DIN6527

TCDCONMS ISO-tolerance class shank diameter

Working process

FEC - Square shoulder milling,FNU - Groove milling

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
