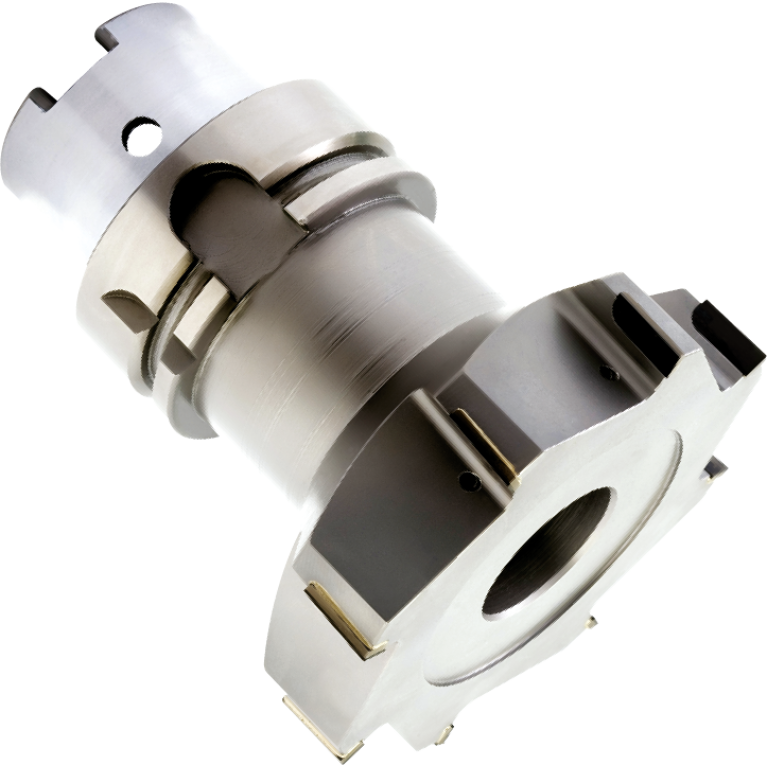

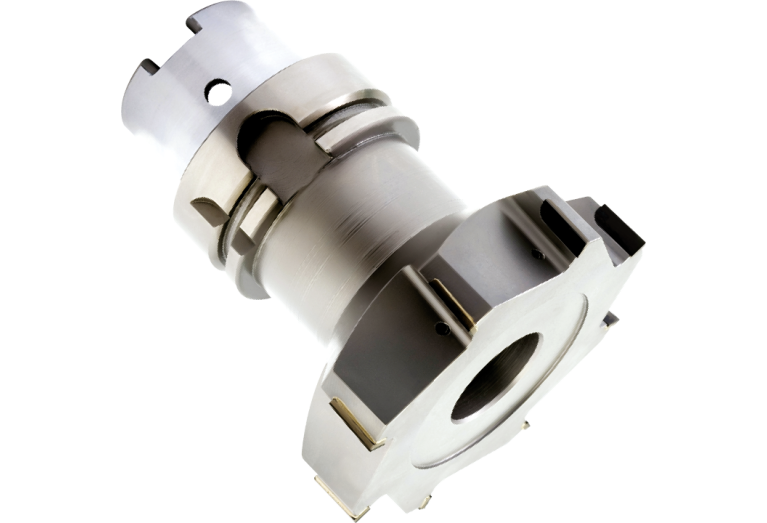

PDF6050-HSK63A DP200

PDF6050-HSK63A DP200 PDF6050-HSK63A DP200 PDF6050-HSK63A DP200

PDF6050-HSK63A DP200

Korloy
Артикул: PDF6050-HSK63A DP200
В наличии
В корзину
Описание
Характеристики

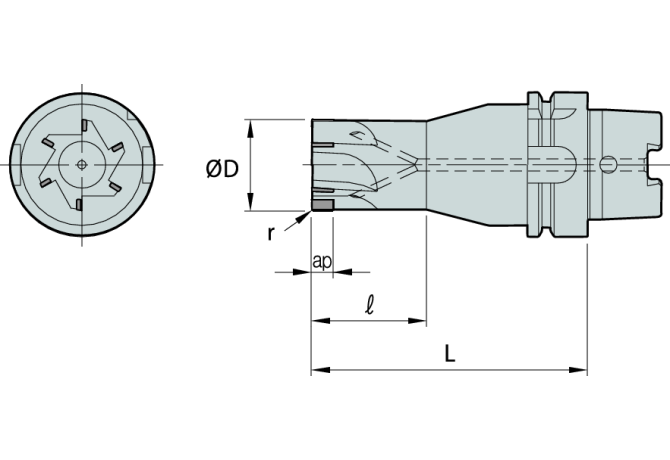

APMX Depth of cut maximum
8 mm
BMC Body material code
B - Steel body with brazed carbide inserts
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
KOR - Korloy
CXSC Coolant exit style code
0 - Without coolant exit
DC Cutting diameter
50 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
6/4/2014
DIN
HSK06300185
F71 Number of corner designs
1
FamilyProducts
PCD FACE CUTTER
FHA Flute helix angle
0 Degree
FHH Flute helix hand
N - Hand of helix neutral
GAMF Rake angle radial
6 Degree
GAMP Rake angle axial
7.5 Degree
GRDMFG Grade manufacturers designation
DP200
HAND Cutting direction
R - Right
Interface codes
J6 /
ISYC Subclass
303-01 - Non-centre cutting end mill
LN Neck length
50 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
HSK Hollow taper shank
LOC-03 CCUMS Connection code unit base
8 non-dimensional size
LOC-03 CZCMS Connection size code
0630
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
HSK06300185
LPR Protruding length
120 mm
Name Identifying order number
PDF6050-HSK63A DP200
RE Corner radius
0.5 mm
Working process
No working processes available
ZEFF Face effective cutting edge count
0
ZEFP Peripheral effective cutting edge count
6
