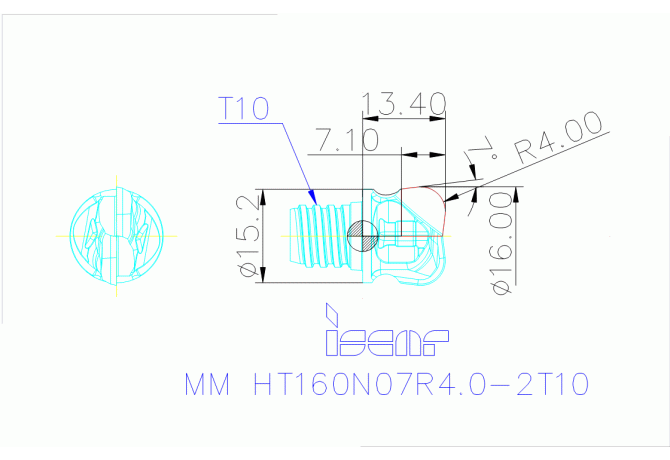

MM HT160N07R4.0-2T10 IC908

Артикул: 5605655

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

7.1 mm

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

TiAlN

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

16 mm

DCP Data chip provision

0 - Without data chip

DIN

SAI01000185

F71 Number of corner designs

FamilyProducts

Torodial 2 Flute Interchangeable Solid Carbide Heads

FHH Flute helix hand

R - Hand of helix right

GRDMFG Grade manufacturers designation

IC908

HAND Cutting direction

R - Right

ID Technical product number

5605655

Interface codes

J6 / J61

ISO

SAI01C0100$$$$

ISYC Subclass

303-01 - Non-centre cutting end mill

LF Functional length

13.4 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

SAI Screw mounting ISCAR

LOC-03 CCUMS Connection code unit base

8 non-dimensional size

LOC-03 CZCMS Connection size code

0100

LOC-03 DCONMS Diameter

15.2 mm

LOC-03 ISO

SAI01C0100$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SAI01000185

Name Identifying order number

MM HT160N07R4.0-2T10 IC908

RE Corner radius

4 mm

THSZMS Connection thread nominal size machine side

T10

Working process

No working processes available

WT Weight of item

0.03 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
