Главная Каталог продукции Toolunited 15 303-01 - Non-centre cutting end mill MM EC200A15R1.0-10T12 IC908

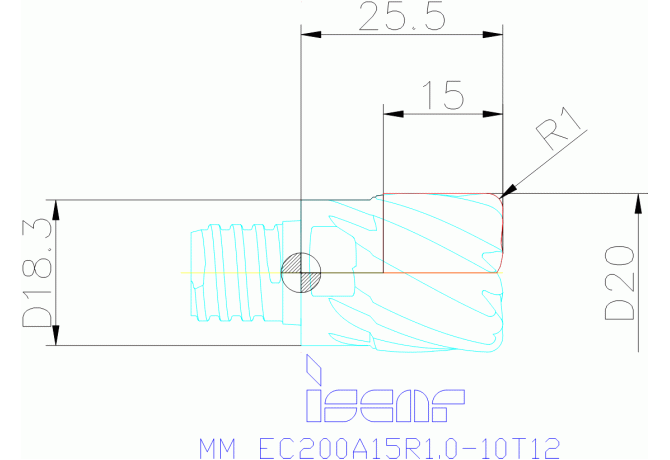

MM EC200A15R1.0-10T12 IC908

Артикул: 5622028

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

15 mm

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

TiAlN

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

20 mm

DCP Data chip provision

0 - Without data chip

DIN

SAI01200185

F71 Number of corner designs

FamilyProducts

Interchangeable 8, 10 Flute Solid Carbide Endmill Heads 30° and 45° Helix and Various Corner Radii

FHA Flute helix angle

30 Degree

FHH Flute helix hand

R - Hand of helix right

GRDMFG Grade manufacturers designation

IC908

HAND Cutting direction

R - Right

ID Technical product number

5622028

Interface codes

J6 / J61

ISO

SAI01C0120$$$$

ISYC Subclass

303-01 - Non-centre cutting end mill

LF Functional length

25.5 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

SAI Screw mounting ISCAR

LOC-03 CCUMS Connection code unit base

8 non-dimensional size

LOC-03 CZCMS Connection size code

0120

LOC-03 DCONMS Diameter

18.45 mm

LOC-03 ISO

SAI01C0120$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SAI01200185

Name Identifying order number

MM EC200A15R1.0-10T12 IC908

RE Corner radius

1 mm

RMPX Ramping angle maximum

3 Degree

THSZMS Connection thread nominal size machine side

T12

Working process

No working processes available

WT Weight of item

0.11 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
