Главная Каталог продукции Toolunited 15 303-01 - Non-centre cutting end mill MC129-14.0A6B-WJ30TF

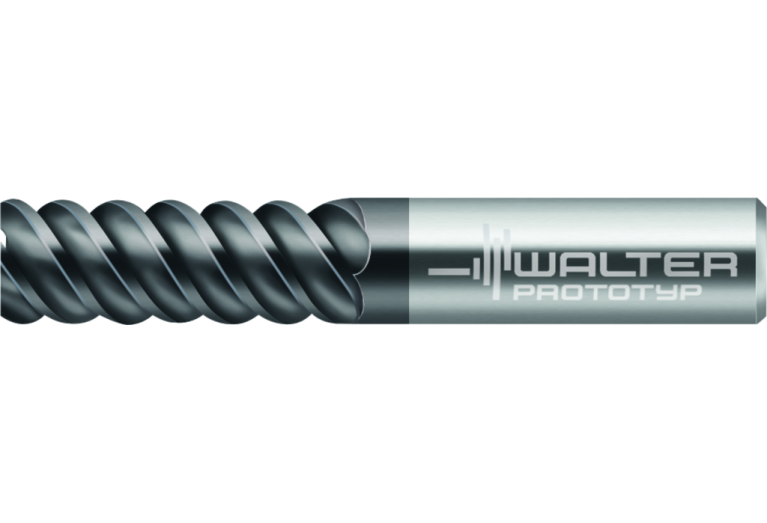

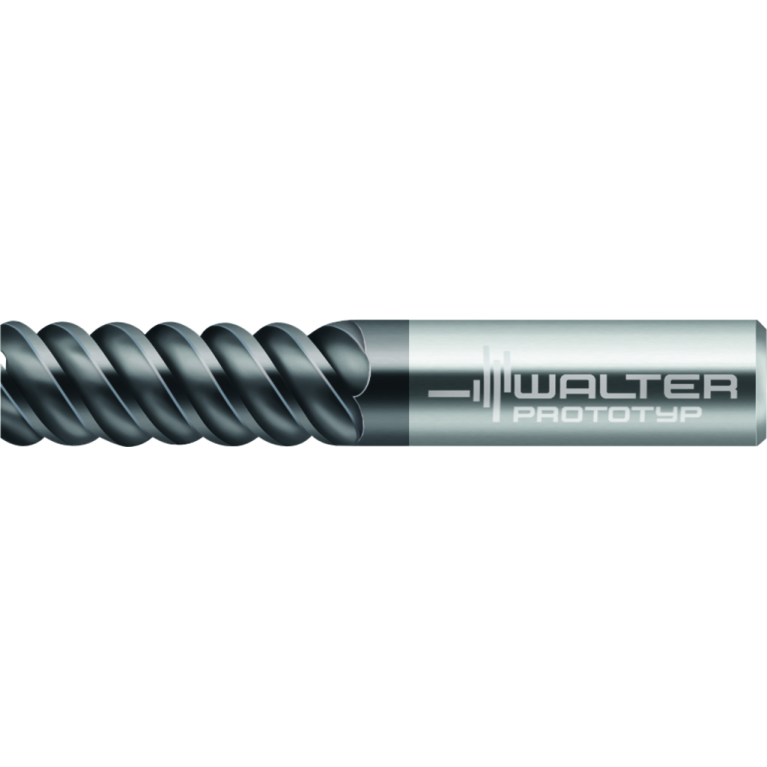

MC129-14.0A6B-WJ30TF

MC129-14.0A6B-WJ30TF MC129-14.0A6B-WJ30TF MC129-14.0A6B-WJ30TF

MC129-14.0A6B-WJ30TF

Walter
Артикул: 6959692
В наличии
В корзину
Описание
Характеристики

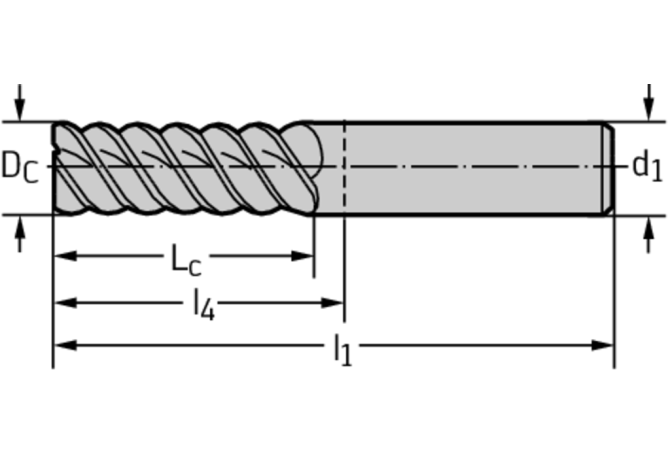

APMX Depth of cut maximum
26 mm
BMC Body material code
H - Solid carbide
CHW Corner chamfer width
0.15 mm
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating / Покрытие
TiAlN
COMPC Company code
W - Walter
CXSC Coolant exit style code
0 - Without coolant exit
DC Cutting diameter
14 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
ZYL01400105
F71 Number of corner designs
1
FamilyProducts
Solid carbide shoulder milling cutters MC129
FHA Flute helix angle
60 Degree
FHH Flute helix hand
R - Hand of helix right
GAMF Rake angle radial
4 Degree
GAMP Rake angle axial
13.5 Degree
GRDMFG Grade manufacturers designation
WJ30TF
HAND Cutting direction
R - Right
ID Technical product number
6959692
Interface codes
J6 / J61
ISO
ZYL01G1400h$06
ISYC Subclass
303-01 - Non-centre cutting end mill
KCH Corner chamfer angle
45 Degree
LF Functional length
83 mm
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
ZYL cylindrical shank
LOC-03 CCUMS Unit base
0 Metric
LOC-03 CZCMS Size code
0140
LOC-03 DCONMS Diameter
14 mm
LOC-03 TCDCONCDMS Tolerance class coded
h$06
LOC-03 ISO
ZYL01G1400h$06
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01400105
LPR Protruding length
38 mm
LS Shank length
45 mm
Materials
P,M,K,S
Name Identifying order number
MC129-14.0A6B-WJ30TF
OAL Overall length
83 mm
RMPX Ramping angle maximum
4 Degree
RPMX Rotational speed maximum
80000 1/min
STDLET Standard letter to the standard number
HA
STDNO Standard
DIN 6527 L
TCDCONMS ISO-tolerance class shank diameter
h6
Working process
FEC - Square shoulder milling,FPL - Face milling,FZI - Circular milling
WT Weight of item
0.176 kg
ZEFF Face effective cutting edge count
6
ZEFP Peripheral effective cutting edge count
6
