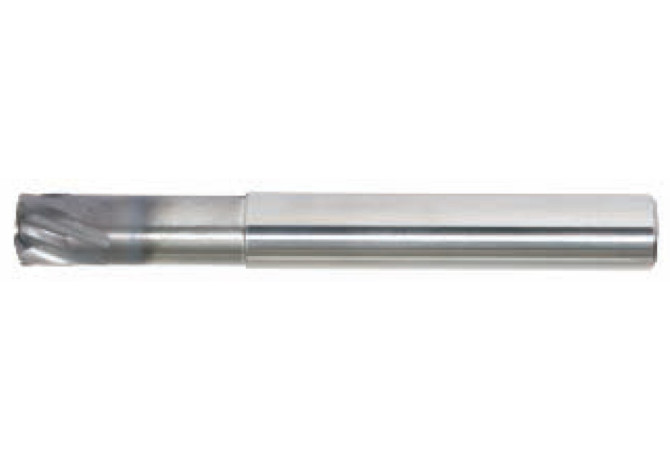

KMDA2000A6ANA KC639M

KMDA2000A6ANA KC639M KMDA2000A6ANA KC639M KMDA2000A6ANA KC639M

KMDA2000A6ANA KC639M

Kennametal
Артикул: 3352494
В наличии
В корзину
Описание
Характеристики

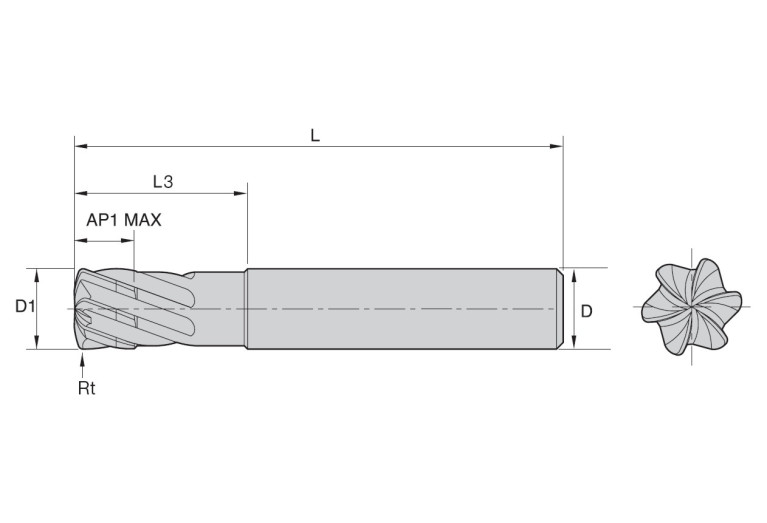

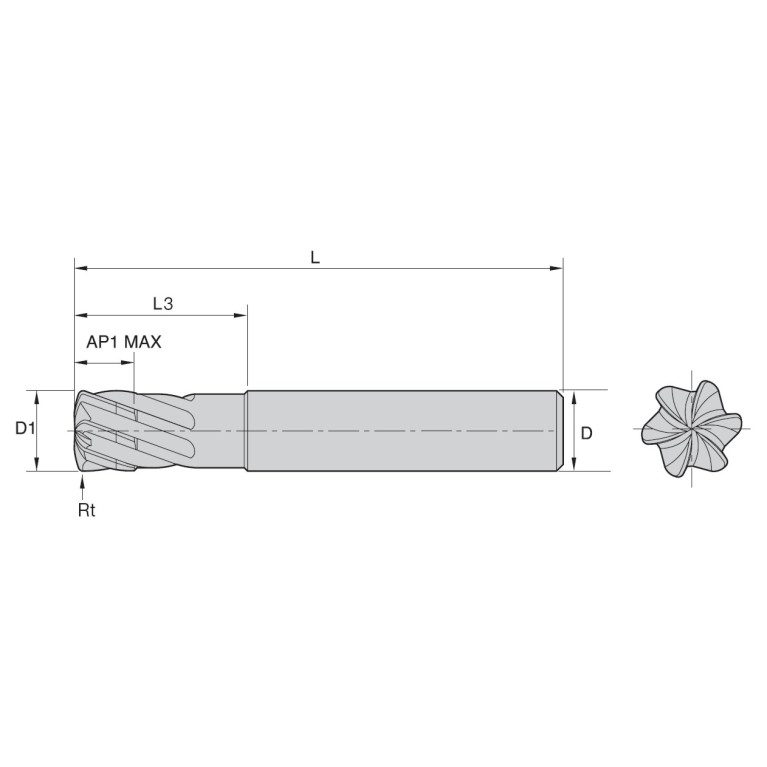

APMX Depth of cut maximum
1.06 mm
AZ Plunge depth maximum
1.25 mm
BMC Body material code
H - Solid carbide
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
KH - Kennametal
CXSC Coolant exit style code
0 - Without coolant exit
DC Cutting diameter
20 mm
DCONMSLD Shank diameter lower limit
0 mm
DCONMSUD Shank diameter upper limit
-0.013 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
11/1/2008
DIN
ZYL02000105
DN Neck diameter
19 mm
F71 Number of corner designs
1
FamilyProducts
KMDA - KenFEED 6-Flute for Medium Steels < 52 HRC
FHA Flute helix angle
20 Degree
FHH Flute helix hand
R - Hand of helix right
GAMF Rake angle radial
-1 Degree
GAMP Rake angle axial
20 Degree
GRDMFG Grade manufacturers designation
KC639M
HAND Cutting direction
R - Right
ID Technical product number
3352494
Interface codes
J6 /
ISYC Subclass
303-01 - Non-centre cutting end mill
LH Head length
60 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0200
LOC-03 DCONMS Diameter
20 mm
LOC-03 TCDCONCDMS Connection tolerance class coded
h$06
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL02000105
LPR Protruding length
60 mm
Name Identifying order number
KMDA2000A6ANA KC639M
OAL Overall length
126 mm
RE Corner radius
1.25 mm
RMPX Ramping angle maximum
5 Degree
TCDCONMS ISO-tolerance class shank diameter
h6
Working process
FNB - Slotting,FNU - Groove milling,FPL - Face milling
ZEFF Face effective cutting edge count
6
ZEFP Peripheral effective cutting edge count
6
