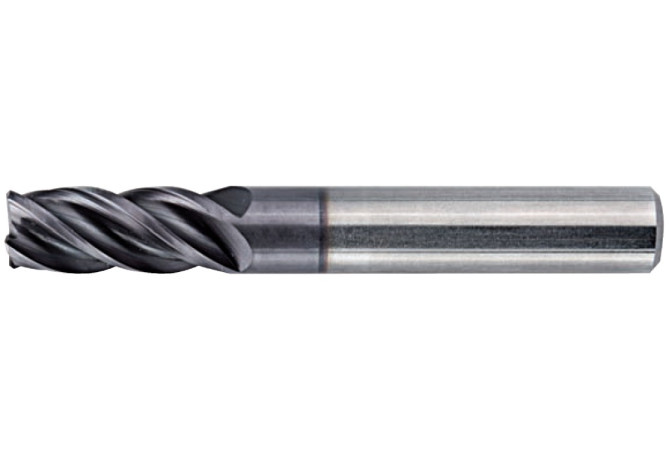

Главная Каталог продукции Toolunited 15 303-01 - Non-centre cutting end mill HPHV375S4150R030 KC633M

HPHV375S4150R030 KC633M

Артикул: 3636987

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

38.1 mm

BMC Body material code

H - Solid carbide

CHW Corner chamfer width

0.508 mm

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

KH - Kennametal

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

9.525 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

11/1/2008

DIN

ZYL03750125

F71 Number of corner designs

FamilyProducts

HPHV - HARVI 4-Flute with Unequal Flute Spacing

FHA Flute helix angle

38 Degree

FHH Flute helix hand

R - Hand of helix right

GRD2ND Standard designation of the grade 2nd application

HC-M30

GRD3RD Standard designation of the grade 3rd application

HC-M20

GRDMFG Grade manufacturers designation

KC633M

GRDPRIO Standard designation of the grade main application

HC-P30

ID Technical product number

3636987

Interface codes

J6 /

ISYC Subclass

303-01 - Non-centre cutting end mill

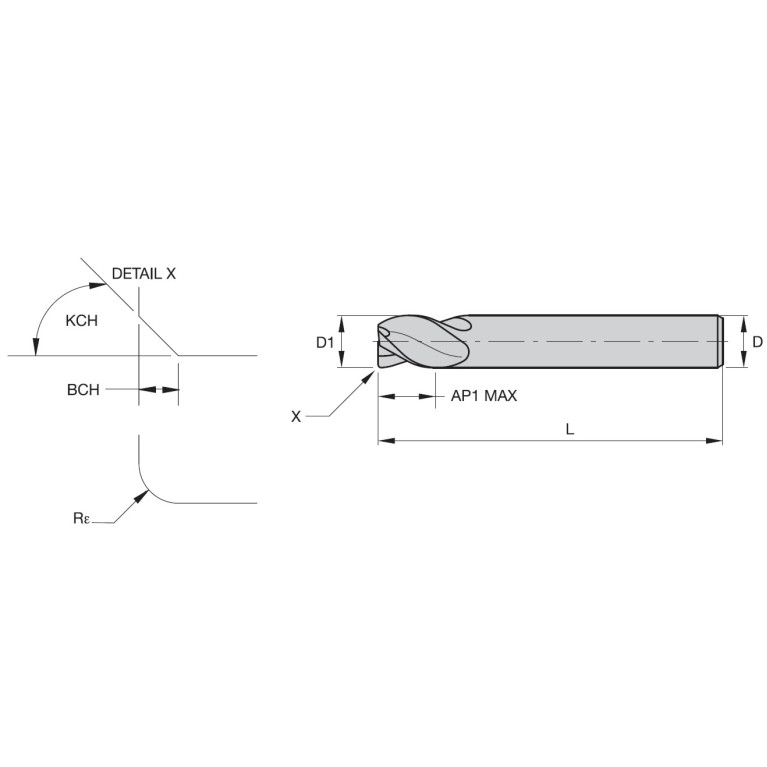

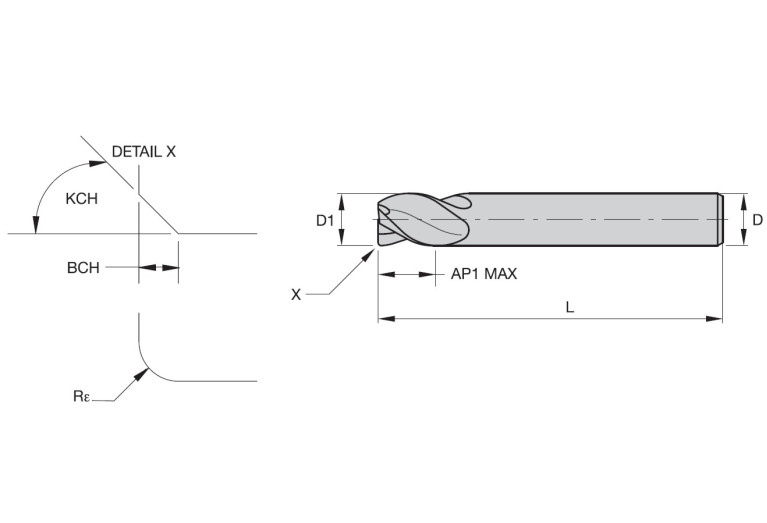

KCH Corner chamfer angle

45 Degree

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

2 Inch

LOC-03 CZCMS Connection size code

0375

LOC-03 DCONMS Diameter

9.525 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL03750125

Name Identifying order number

HPHV375S4150R030 KC633M

OAL Overall length

101.6 mm

RE Corner radius

0.762 mm

Working process

FEC - Square shoulder milling,FNB - Slotting,FNU - Groove milling

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
