Главная Каталог продукции Toolunited 15 303-01 - Non-centre cutting end mill F4AS2000AWX38R400 KC637M

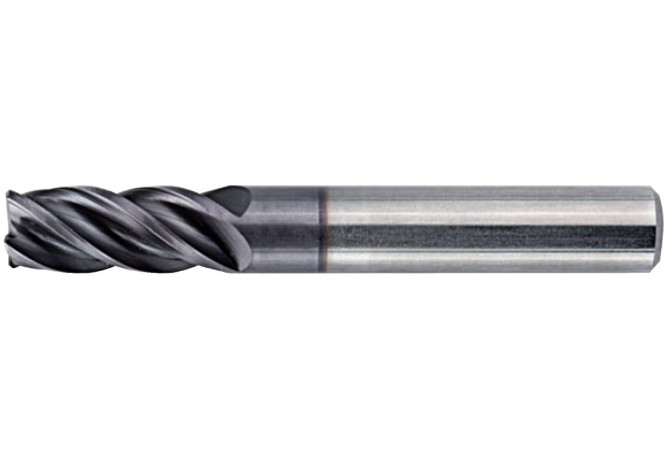

F4AS2000AWX38R400 KC637M

Артикул: F4AS2000AWX38R400KC637M

В наличии

В корзину

Описание

Характеристики

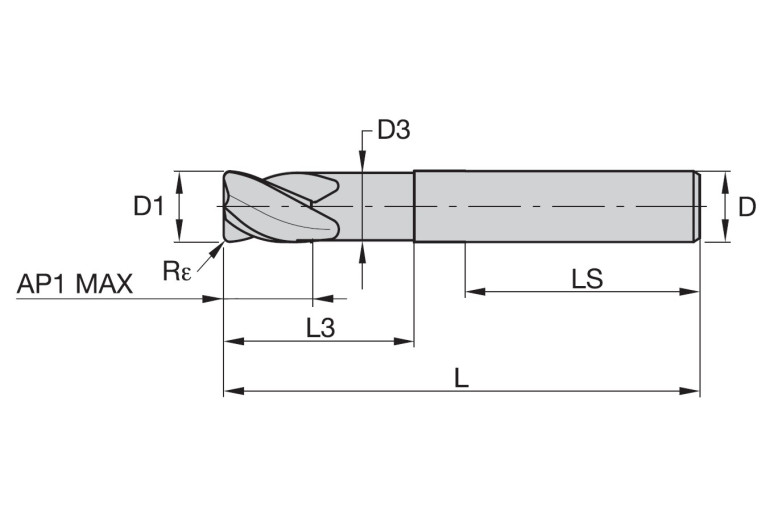

APMX Depth of cut maximum

30 mm

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

KH - Kennametal

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

20 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/10/2007

DIN

ZYL02000105

DN Neck diameter

19 mm

F71 Number of corner designs

FamilyProducts

FACTSTD-38°-SMOOTH-FINISHER4FL, solid carbide mill

FHA Flute helix angle

38 Degree

FHH Flute helix hand

R - Hand of helix right

GRDMFG Grade manufacturers designation

KC637M

ID Technical product number

F4AS2000AWX38R400KC637M

Interface codes

J6 /

ISYC Subclass

303-01 - Non-centre cutting end mill

LH Head length

60 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0200

LOC-03 DCONMS Diameter

20 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL02000105

LPR Protruding length

60 mm

LS Shank length

50 mm

Name Identifying order number

F4AS2000AWX38R400 KC637M

OAL Overall length

115 mm

RE Corner radius

4 mm

Working process

FEC - Square shoulder milling,FFO - Die milling,FNB - Slotting,FNU - Groove milling

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
