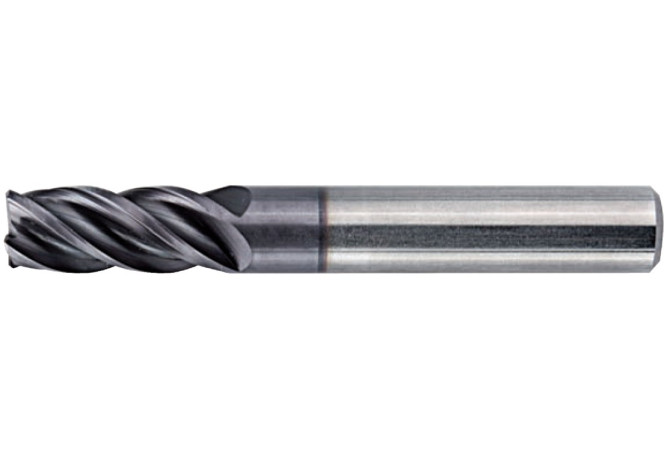

Главная Каталог продукции Toolunited 15 303-01 - Non-centre cutting end mill F4AS1200AWL38R050 KC637M

F4AS1200AWL38R050 KC637M

Артикул: F4AS1200AWL38R050KC637M

В наличии

В корзину

Описание

Характеристики

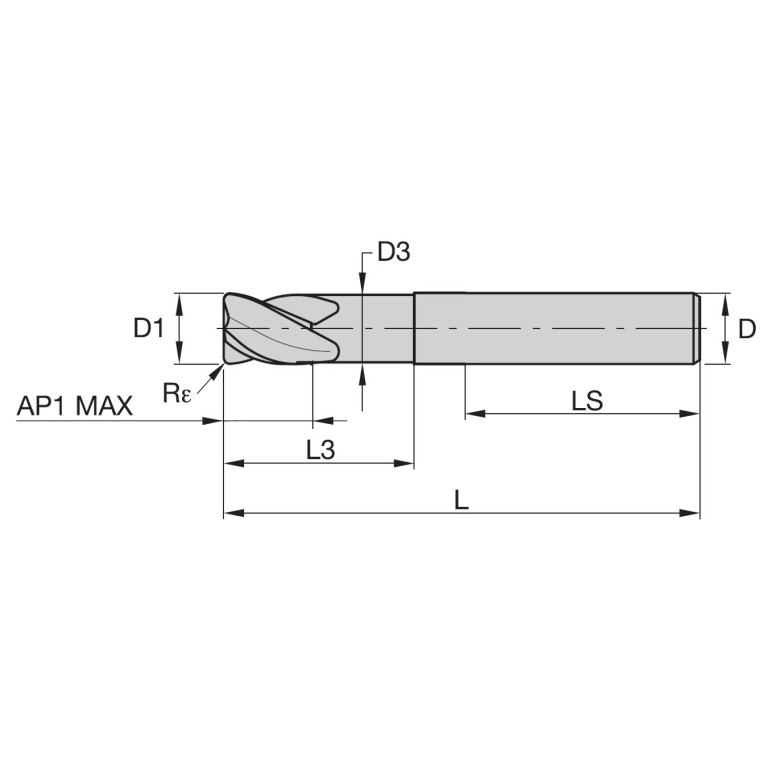

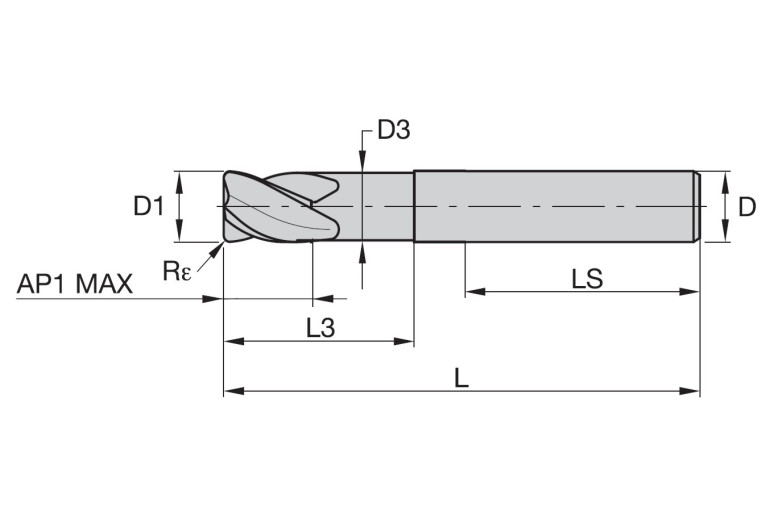

APMX Depth of cut maximum

18 mm

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

KH - Kennametal

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

12 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/10/2007

DIN

ZYL01200105

DN Neck diameter

11.5 mm

F71 Number of corner designs

FamilyProducts

FACTSTD-38°-SMOOTH-FINISHER4FL, solid carbide mill

FHA Flute helix angle

38 Degree

FHH Flute helix hand

R - Hand of helix right

GRDMFG Grade manufacturers designation

KC637M

ID Technical product number

F4AS1200AWL38R050KC637M

Interface codes

J6 /

ISYC Subclass

303-01 - Non-centre cutting end mill

LH Head length

36 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0120

LOC-03 DCONMS Diameter

12 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01200105

LPR Protruding length

36 mm

LS Shank length

45 mm

Name Identifying order number

F4AS1200AWL38R050 KC637M

OAL Overall length

84 mm

RE Corner radius

0.5 mm

Working process

FEC - Square shoulder milling,FFO - Die milling,FNB - Slotting,FNU - Groove milling

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
