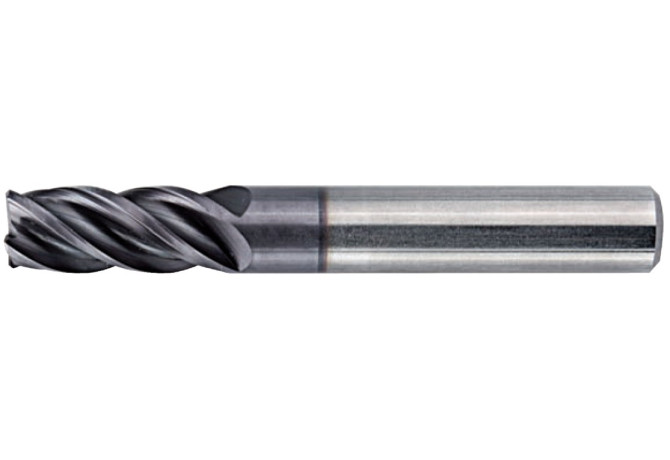

Главная Каталог продукции Toolunited 15 303-01 - Non-centre cutting end mill F4AS0600AWM38R050 KC637M

F4AS0600AWM38R050 KC637M

Артикул: F4AS0600AWM38R050KC637M

В наличии

В корзину

Описание

Характеристики

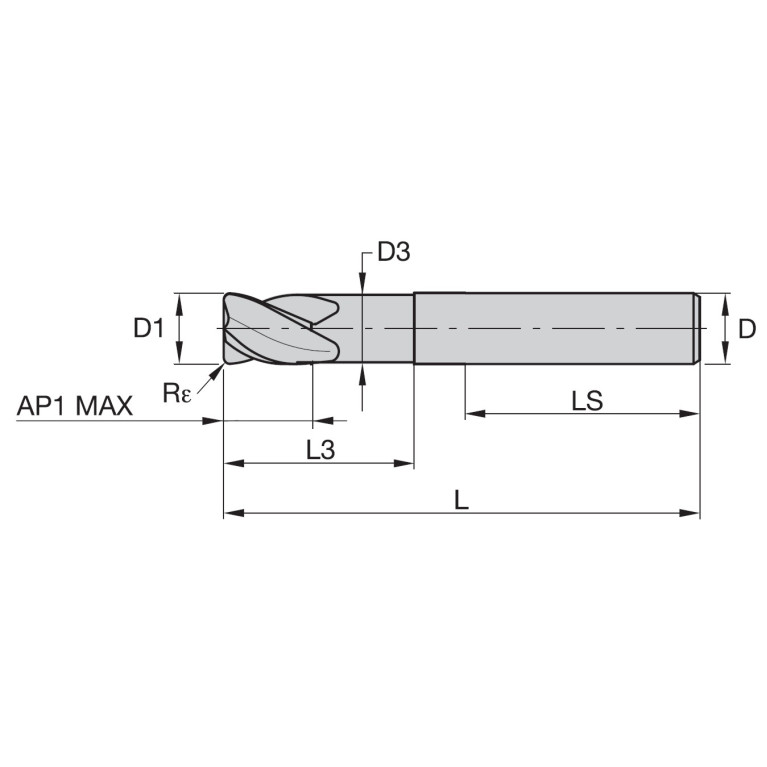

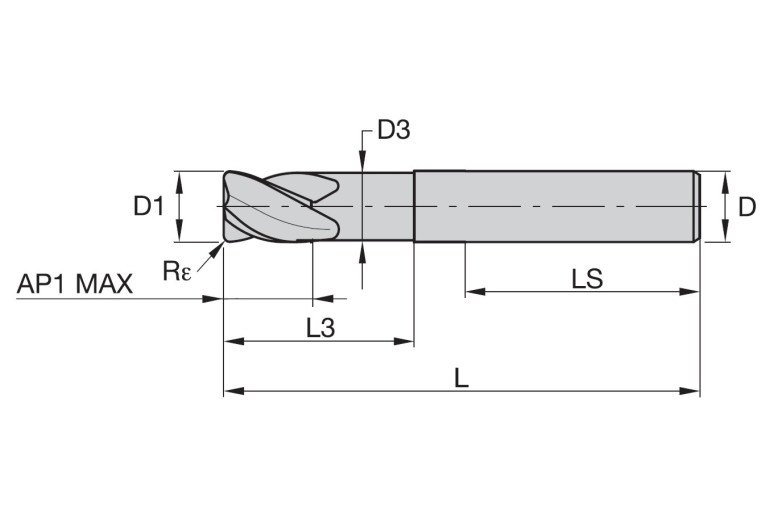

APMX Depth of cut maximum

9 mm

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

KH - Kennametal

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

6 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/10/2007

DIN

ZYL00600105

DN Neck diameter

5.8 mm

F71 Number of corner designs

FamilyProducts

FACTSTD-38°-SMOOTH-FINISHER4FL, solid carbide mill

FHA Flute helix angle

38 Degree

FHH Flute helix hand

R - Hand of helix right

GRDMFG Grade manufacturers designation

KC637M

ID Technical product number

F4AS0600AWM38R050KC637M

Interface codes

J6 / J61

ISO

ZYL01F6000$$$$

ISYC Subclass

303-01 - Non-centre cutting end mill

LH Head length

18 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0060

LOC-03 DCONMS Diameter

6 mm

LOC-03 ISO

ZYL01F6000$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00600105

LPR Protruding length

18 mm

LS Shank length

36 mm

Name Identifying order number

F4AS0600AWM38R050 KC637M

OAL Overall length

63 mm

RE Corner radius

0.5 mm

Working process

FEC - Square shoulder milling,FFO - Die milling,FNB - Slotting,FNU - Groove milling

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
