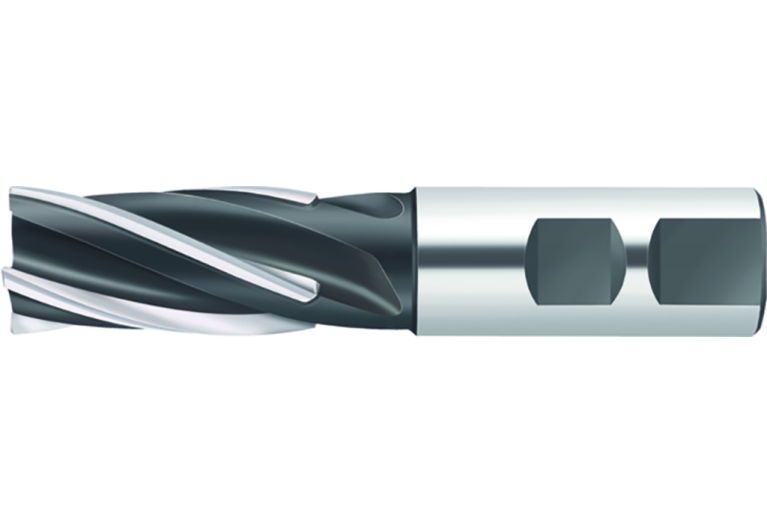

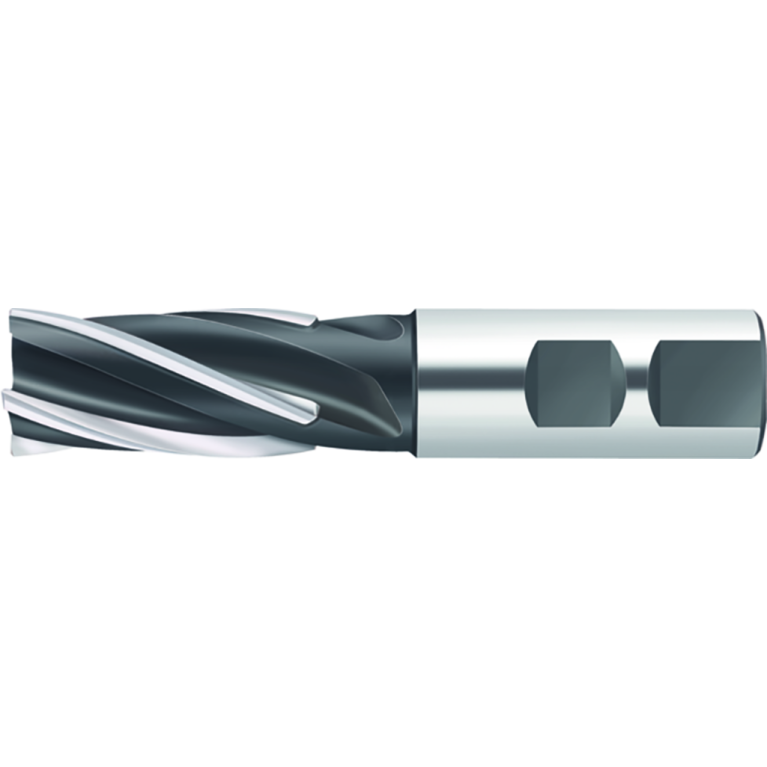

Главная Каталог продукции Toolunited 15 303-01 - Non-centre cutting end mill F1678.W.040.Z06.63.P

F1678.W.040.Z06.63.P

F1678.W.040.Z06.63.P F1678.W.040.Z06.63.P F1678.W.040.Z06.63.P

F1678.W.040.Z06.63.P

Walter
Артикул: 5001577
В наличии
В корзину
Описание
Характеристики

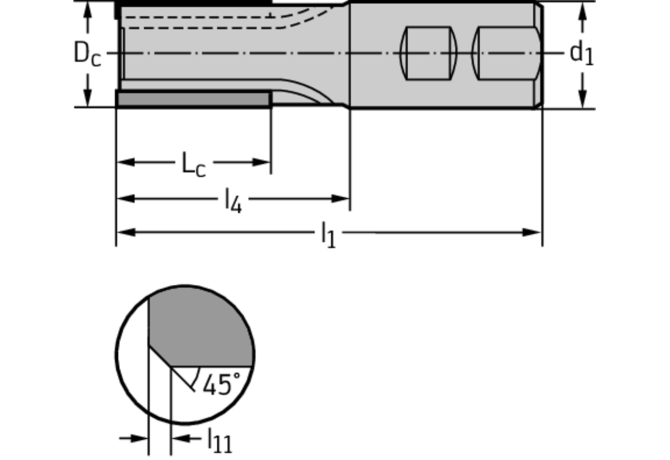

APMX Depth of cut maximum
63 mm
BMC Body material code
S - Solid steel
CHW Corner chamfer width
0.8 mm
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating / Покрытие
unbeschichtet
COMPC Company code
W - Walter
CXSC Coolant exit style code
0 - Without coolant exit
DC Cutting diameter
40 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
ZYL03201005
DN Neck diameter
37.5 mm
F71 Number of corner designs
1
FamilyProducts
Brazed helical shoulder milling cutters F1678
FHA Flute helix angle
25 Degree
FHH Flute helix hand
R - Hand of helix right
GAMF Rake angle radial
5 Degree
GAMP Rake angle axial
25 Degree
GRDMFG Grade manufacturers designation
WP40
HAND Cutting direction
R - Right
ID Technical product number
5001577
Interface codes
J6 / J61
ISO
ZYL10G3200h$06
ISYC Subclass
303-01 - Non-centre cutting end mill
KCH Corner chamfer angle
45 Degree
LF Functional length
109 mm
LOC-03 CCFMS Form
10
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
ZYL cylindrical shank
LOC-03 CCUMS Unit base
0 Metric
LOC-03 CZCMS Size code
0320
LOC-03 DCONMS Diameter
32 mm
LOC-03 TCDCONCDMS Tolerance class coded
h$06
LOC-03 ISO
ZYL10G3200h$06
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL03201005
LPR Protruding length
84 mm
LS Shank length
60 mm
Materials
P
Name Identifying order number
F1678.W.040.Z06.63.P
OAL Overall length
145 mm
RMPX Ramping angle maximum
1.5 Degree
RPMX Rotational speed maximum
8000 1/min
STDLET Standard letter to the standard number
WE
STDNO Standard
ISO3338-2
TCDCONMS ISO-tolerance class shank diameter
h6
Working process
FEC - Square shoulder milling,FNU - Groove milling,FPL - Face milling,FSE - Counter-sinking,FZI - Circular milling
WT Weight of item
1.025 kg
ZEFF Face effective cutting edge count
6
ZEFP Peripheral effective cutting edge count
6
