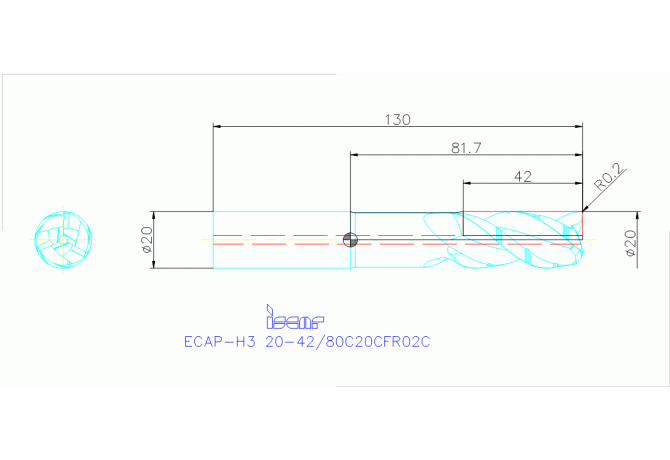

ECAP-H3 20-42/80C20CFR02C IC08

Артикул: 5623460

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

42 mm

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

Uncoated

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

20 mm

DCP Data chip provision

0 - Without data chip

DIN

ZYL02000105

F71 Number of corner designs

FamilyProducts

Solid Carbide Endmills with Different Helix, Variable Pitch, Chip Splitters and Coolant Holes for Machining Aluminum

FHA Flute helix angle

40 Degree

FHH Flute helix hand

R - Hand of helix right

GRDMFG Grade manufacturers designation

IC08

HAND Cutting direction

R - Right

ID Technical product number

5623460

Interface codes

J6 / J61

ISO

ZYL01G2000h$06

ISYC Subclass

303-01 - Non-centre cutting end mill

LF Functional length

130 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0200

LOC-03 DCONMS Diameter

20 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03 ISO

ZYL01G2000h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL02000105

LS Shank length

50 mm

Name Identifying order number

ECAP-H3 20-42/80C20CFR02C IC08

OAL Overall length

130 mm

RE Corner radius

0.2 mm

RMPX Ramping angle maximum

5 Degree

TCDCONMS ISO-tolerance class shank diameter

Working process

No working processes available

WT Weight of item

0.45 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
