Главная Каталог продукции Toolunited 15 303-01 - Non-centre cutting end mill ECA-H3 08-16/40C08CF-R02C IC08

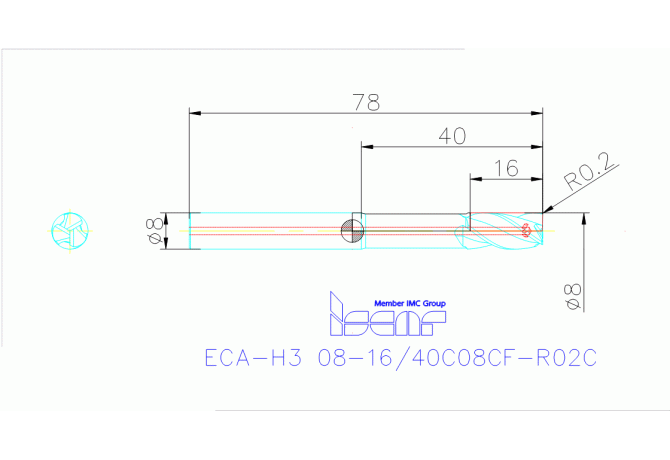

ECA-H3 08-16/40C08CF-R02C IC08

Артикул: 5623175

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

16 mm

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COATN Coating / Покрытие

Uncoated

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

2 - With Coolant exit, radial

DC Cutting diameter

8 mm

DCP Data chip provision

0 - Without data chip

DIN

ZYL00800115

F71 Number of corner designs

FamilyProducts

Solid Carbide Endmills with Different Helix, Variable Pitch, Coolant Holes and Neck Relief for Machining Aluminum

FHA Flute helix angle

40 Degree

FHH Flute helix hand

R - Hand of helix right

GRDMFG Grade manufacturers designation

IC08

HAND Cutting direction

R - Right

ID Technical product number

5623175

Interface codes

J6 / J61

ISO

ZYL01F8000h$06

ISYC Subclass

303-01 - Non-centre cutting end mill

LF Functional length

78 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0080

LOC-03 DCONMS Diameter

8 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03 ISO

ZYL01F8000h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00800115

LS Shank length

38 mm

Name Identifying order number

ECA-H3 08-16/40C08CF-R02C IC08

OAL Overall length

78 mm

RE Corner radius

0.2 mm

RMPX Ramping angle maximum

5 Degree

TCDCONMS ISO-tolerance class shank diameter

Working process

No working processes available

WT Weight of item

0.04 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
