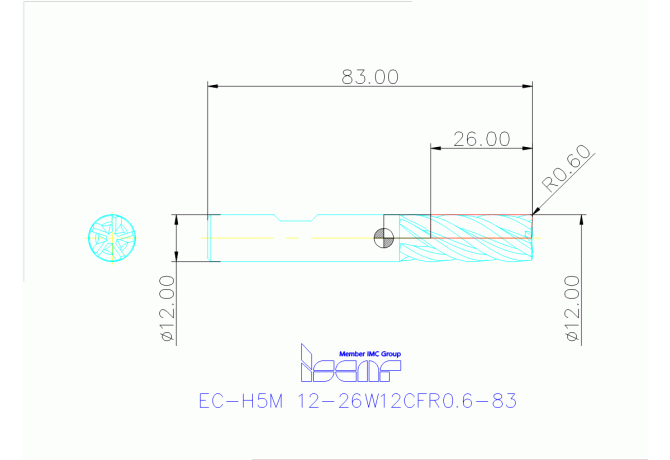

EC-H5M 12-26W12CFR0.6-83 IC900

Артикул: 5623063

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

26 mm

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

TiAlN

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

12 mm

DCP Data chip provision

0 - Without data chip

DIN

ZYL01201005

F71 Number of corner designs

FamilyProducts

5 Flute Endmills with Different Helix (36 - 38°) and Variable Pitch for Chatter Dampening with Assorted Radii

FHA Flute helix angle

37 Degree

FHH Flute helix hand

R - Hand of helix right

GRDMFG Grade manufacturers designation

IC900

HAND Cutting direction

R - Right

ID Technical product number

5623063

Interface codes

J6 / J61

ISO

ZYL10G1200h$06

ISYC Subclass

303-01 - Non-centre cutting end mill

LF Functional length

60.5 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0120

LOC-03 DCONMS Diameter

12 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03 ISO

ZYL10G1200h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01201005

Name Identifying order number

EC-H5M 12-26W12CFR0.6-83 IC900

OAL Overall length

83 mm

RE Corner radius

0.6 mm

RMPX Ramping angle maximum

5 Degree

TCDCONMS ISO-tolerance class shank diameter

Working process

No working processes available

WT Weight of item

0.11 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
