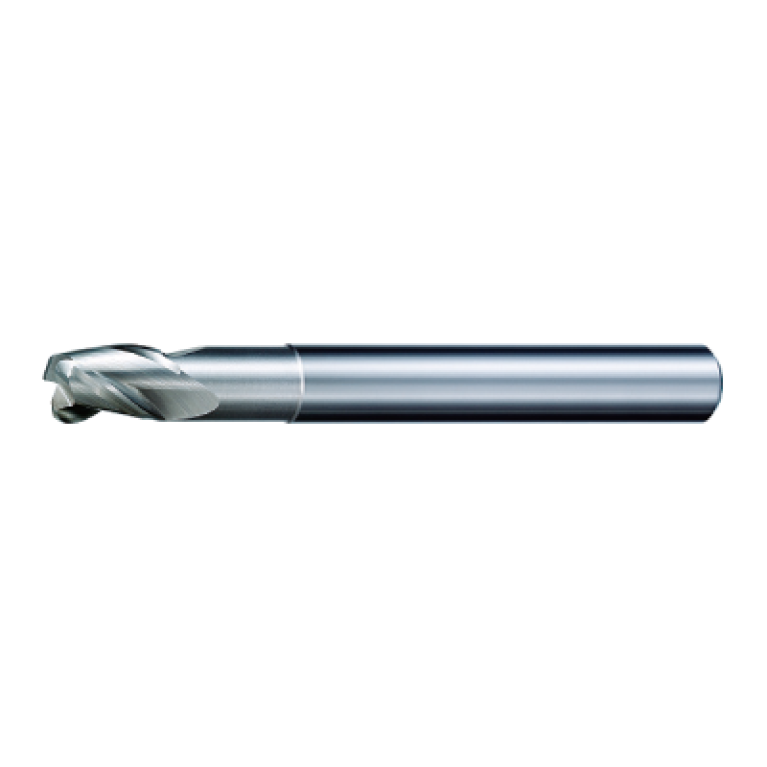

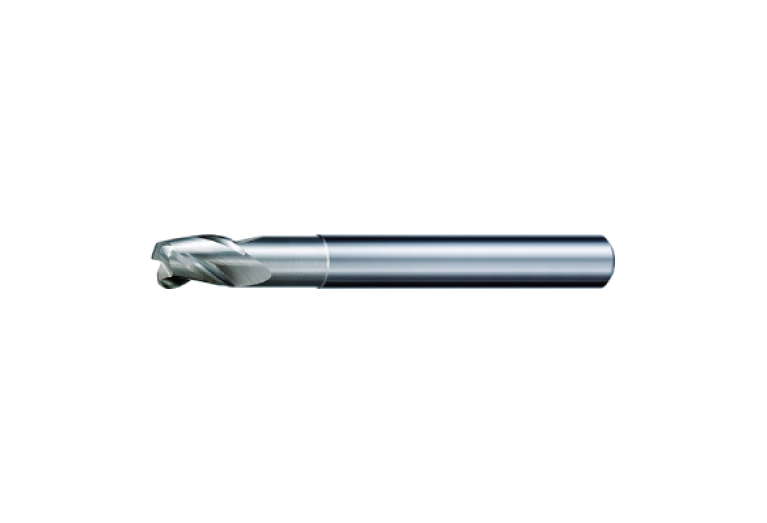

C3SARBD1800R320

C3SARBD1800R320 C3SARBD1800R320 C3SARBD1800R320 C3SARBD1800R320

C3SARBD1800R320

Mitsubishi Materials
Артикул: 509317
В наличии
В корзину
Описание
Характеристики

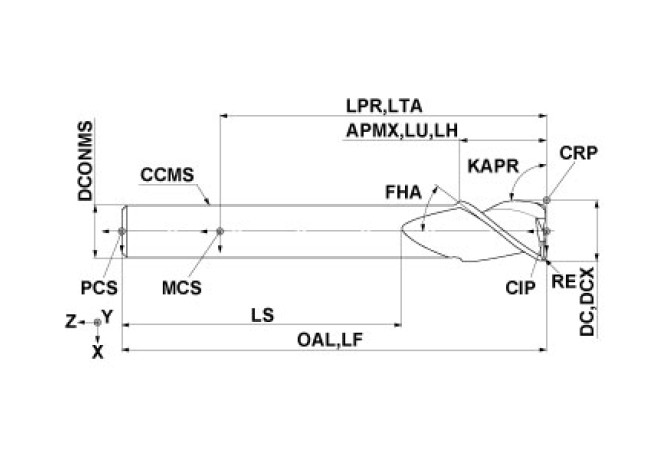

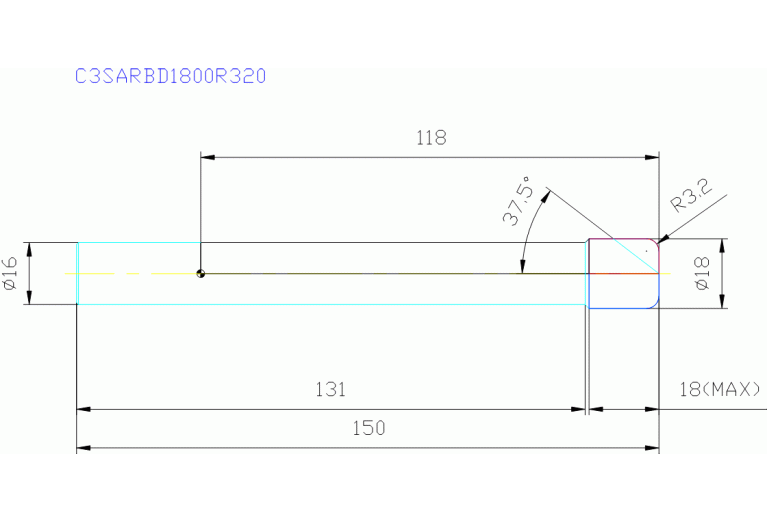

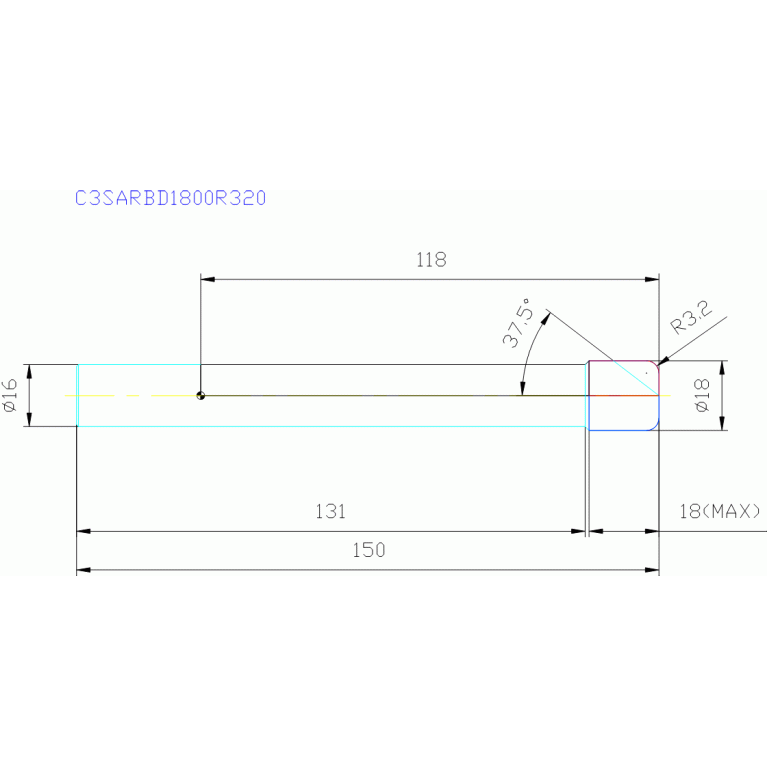

APMX Depth of cut maximum
18 mm
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
MI - Mitsubishi Materials
CXSC Coolant exit style code
0 - Without coolant exit
DC Cutting diameter
18 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
4/1/2022
DIN
ZYL01600105
F71 Number of corner designs
1
FamilyProducts
Carbide end mill C3SARB
FHA Flute helix angle
37.5 Degree
FHH Flute helix hand
R - Hand of helix right
GAMF Rake angle radial
37.5 Degree
HAND Cutting direction
R - Right
ID Technical product number
509317
Interface codes
J6 /
ISYC Subclass
303-01 - Non-centre cutting end mill
LF Functional length
150 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0160
LOC-03 DCONMS Diameter
16 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01600105
MILTTY Mill tool type ISO
G - Side end mill (one or more indexable insert pro cutting edge) 90°
Name Identifying order number
C3SARBD1800R320
OAL Overall length
150 mm
RE Corner radius
3.2 mm
Working process
No working processes available
ZEFF Face effective cutting edge count
3
ZEFP Peripheral effective cutting edge count
3
