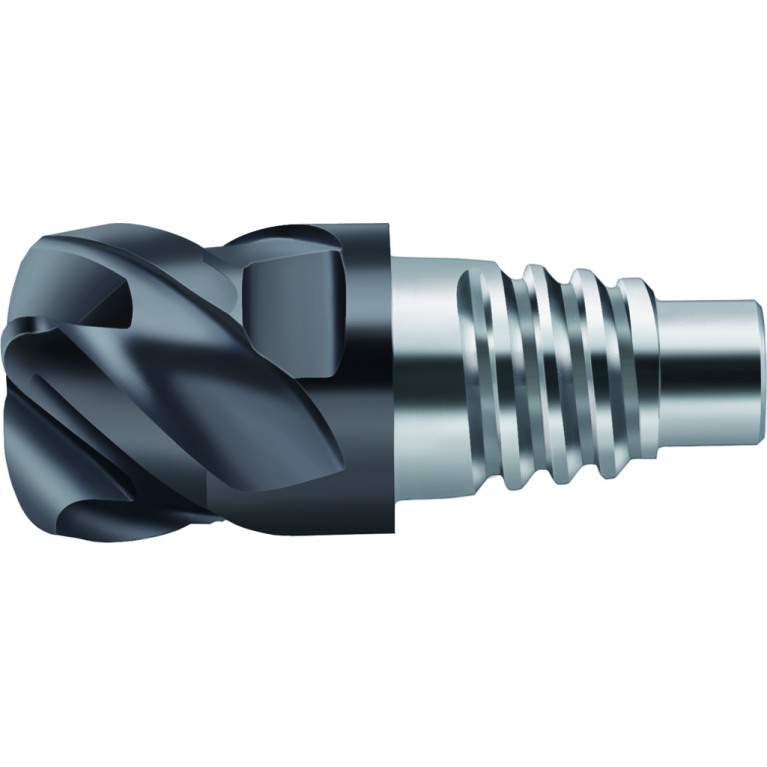

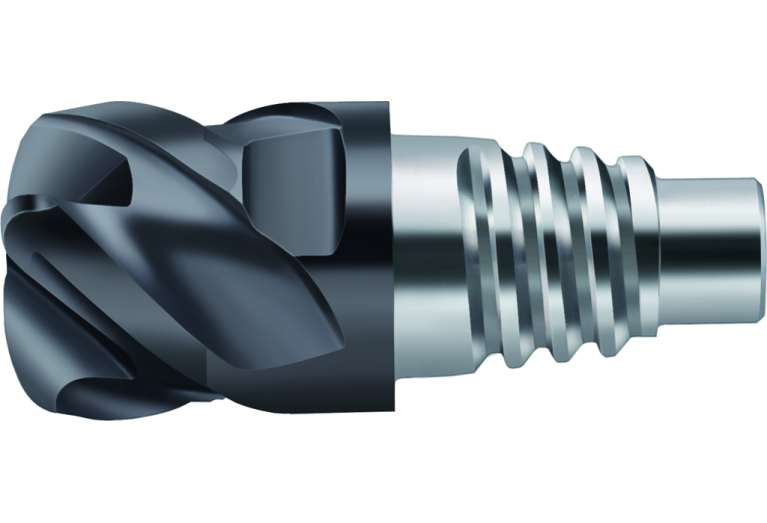

Главная Каталог продукции Toolunited 15 303-01 - Non-centre cutting end mill AH3E94718-E20-3/4

AH3E94718-E20-3/4

Артикул: 5832000

В наличии

В корзину

Описание

Характеристики

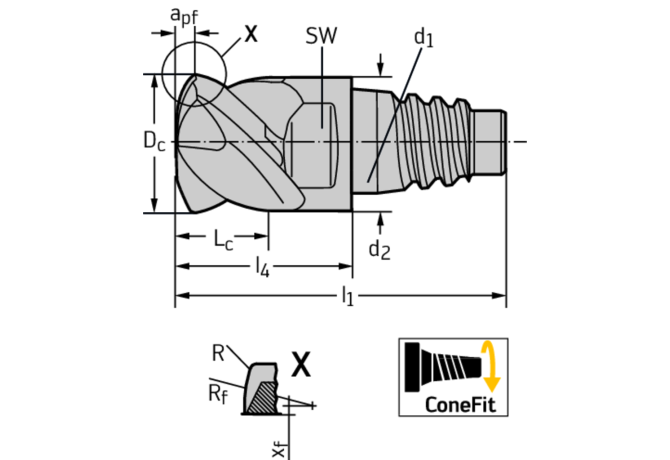

APMX Depth of cut maximum

10.5 mm

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

W - Walter

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

19.05 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

SAC02000485

DN Neck diameter

18.5 mm

F71 Number of corner designs

FamilyProducts

Solid carbide shoulder/slot milling cutter AH3E94718

FHA Flute helix angle

50 Degree

FHH Flute helix hand

R - Hand of helix right

GAMF Rake angle radial

-18 Degree

GAMP Rake angle axial

6 Degree

GRDMFG Grade manufacturers designation

TAX

HAND Cutting direction

R - Right

ID Technical product number

5832000

Interface codes

J6 / J61

ISO

SAC04B0200$$$$

ISYC Subclass

303-01 - Non-centre cutting end mill

LF Functional length

21.3 mm

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

SAC Screw mounting SANDVIK Coromant

LOC-03 CCUMS Unit base

8 non-dimensional size

LOC-03 CZCMS Size code

0200

LOC-03 DCONMS Diameter

18.5 mm

LOC-03 ISO

SAC04B0200$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SAC02000485

LPR Protruding length

21.3 mm

Name Identifying order number

AH3E94718-E20-3/4

OAL Overall length

40.8 mm

RE Corner radius

2.032 mm

RMPX Ramping angle maximum

5 Degree

RPMX Rotational speed maximum

80000 1/min

STDNO Standard

PWZ-NORM

Working process

FEC - Square shoulder milling,FNU - Groove milling,FPL - Face milling,FSE - Counter-sinking,FZI - Circular milling

WT Weight of item

0.12 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
