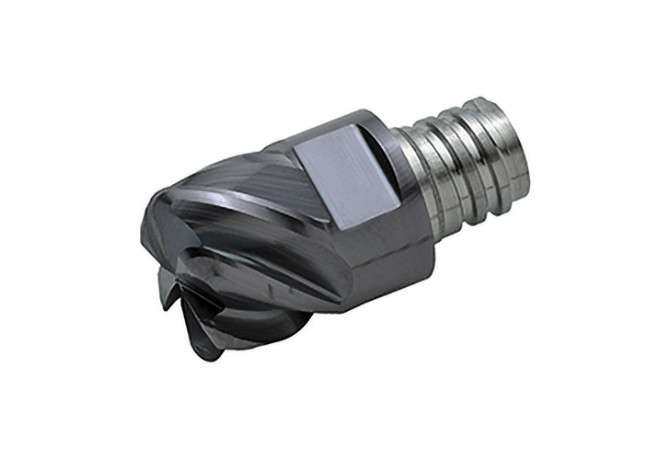

Главная Каталог продукции Toolunited 15 303-01 - Non-centre cutting end mill 48D08005TQRD10 IN2005

48D08005TQRD10 IN2005

Артикул: 5840409

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

5 mm

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

TiAIN

COMPC Company code

IL - Ingersoll

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

8 mm

DCP Data chip provision

0 - Without data chip

Delivery state

LA - Soon discontinued

DIN

SAI00500105

F71 Number of corner designs

FamilyProducts

Finishing cutter with corner radius 45°

FHA Flute helix angle

45 Degree

FHH Flute helix hand

R - Hand of helix right

GRD2ND Standard designation of the grade 2nd application

HC-K40

GRDMFG Grade manufacturers designation

IN2005

GRDPRIO Standard designation of the grade main application

HC-M35

HAND Cutting direction

R - Right

ID Technical product number

5840409

Interface codes

J6 /

ISYC Subclass

303-01 - Non-centre cutting end mill

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

SAI Screw mounting ISCAR

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0050

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SAI00500105

LPR Protruding length

10 mm

Name Identifying order number

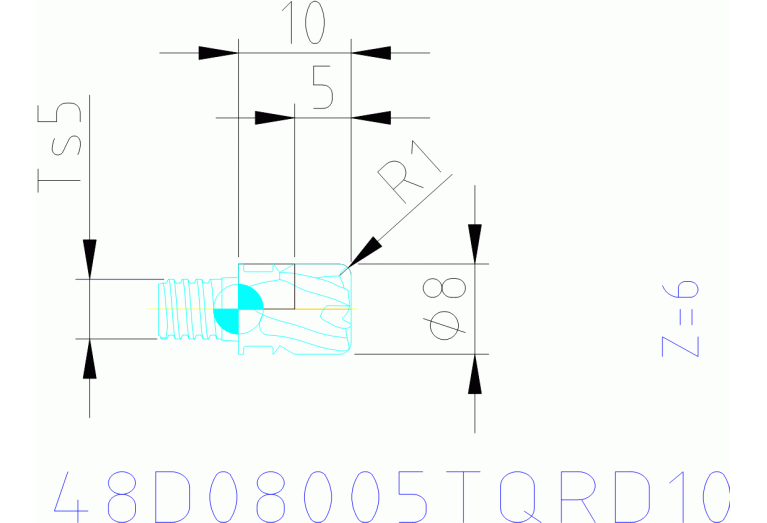

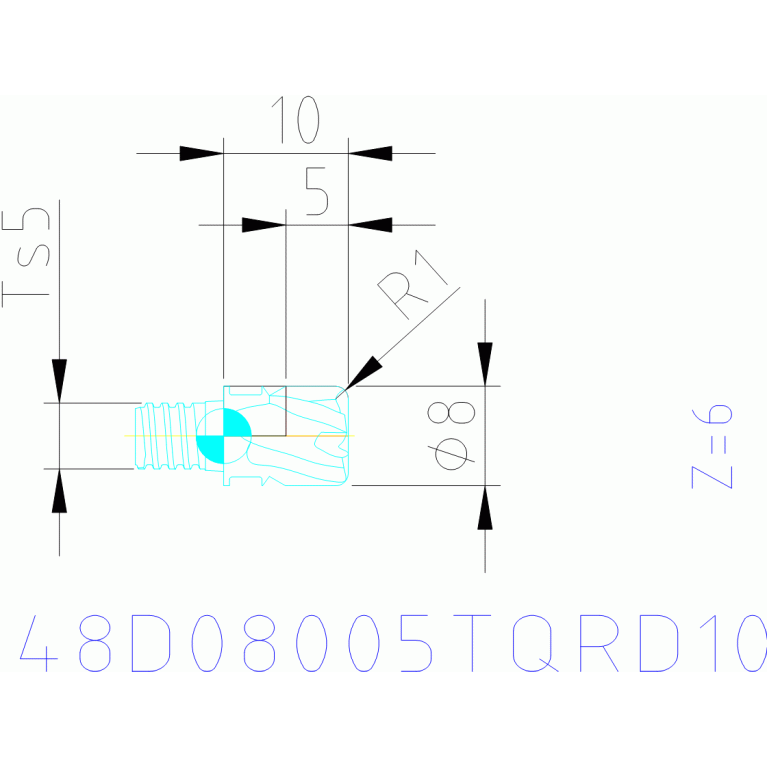

48D08005TQRD10 IN2005

OAL Overall length

17.1 mm

RE Corner radius

1 mm

THSZMS Connection thread nominal size machine side

Working process

No working processes available

WT Weight of item

0.007 kg

ZEFP Peripheral effective cutting edge count
