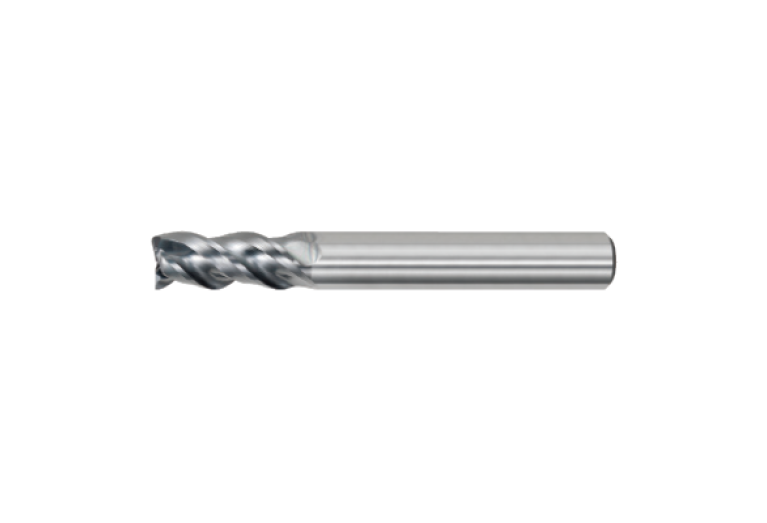

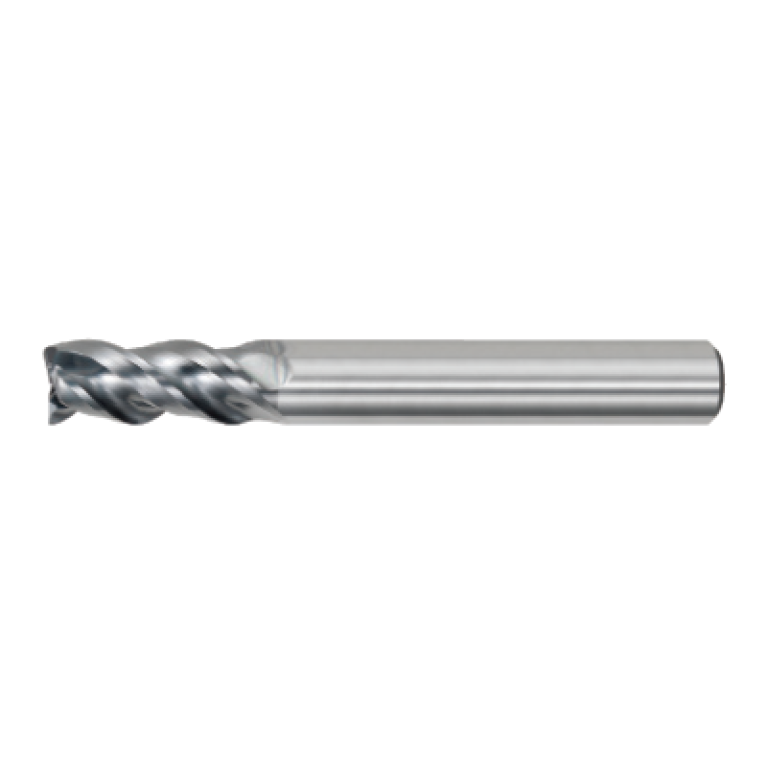

Главная Каталог продукции Toolunited 15 303-02 - Centre cutting end mill VQMHZVOHD5/16

VQMHZVOHD5/16

Артикул: 657512

В наличии

В корзину

Описание

Характеристики

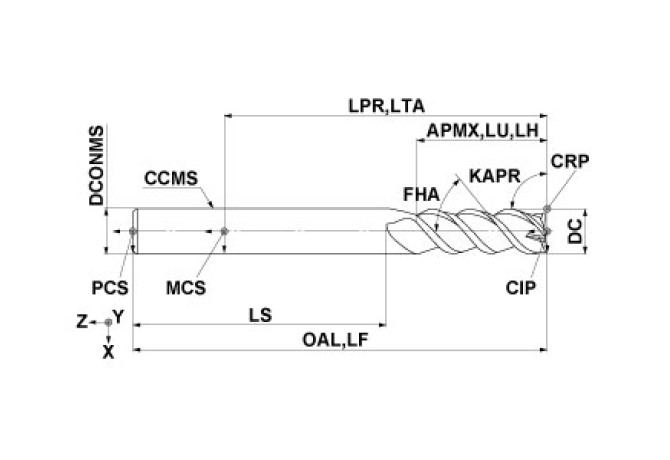

APMX Depth of cut maximum

19.05 mm

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COATN Coating / Покрытие

AlCrN

COMPC Company code

MI - Mitsubishi Materials

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

DC Cutting diameter

7.938 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2024

DIN

ZYL03120135

FamilyProducts

Carbide End mill, Medium cut length, 3 flute for drilling and slotting with coolant holes

FHA Flute helix angle

45 Degree

FHH Flute helix hand

R - Hand of helix right

HAND Cutting direction

R - Right

ID Technical product number

657512

Interface codes

J6 / J61

ISO

ZYL01R3125h$06

ISYC Subclass

303-02 - Centre cutting end mill

LF Functional length

69.85 mm

LH Head length

19.05 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

3 Inch with coolant

LOC-03 CZCMS Connection size code

0312

LOC-03 DCONMS Diameter

7.938 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03 ISO

ZYL01R3125h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL03120135

LPR Protruding length

41.275 mm

LS Shank length

50.8 mm

LU Usable length

19.05 mm

Name Identifying order number

VQMHZVOHD5/16

OAL Overall length

69.85 mm

TCDCONMS ISO-tolerance class shank diameter

Working process

FPL - Face milling

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
