Главная Каталог продукции Toolunited 15 303-02 - Centre cutting end mill VQJHVD1/2

VQJHVD1/2

Артикул: 690970

В наличии

В корзину

Описание

Характеристики

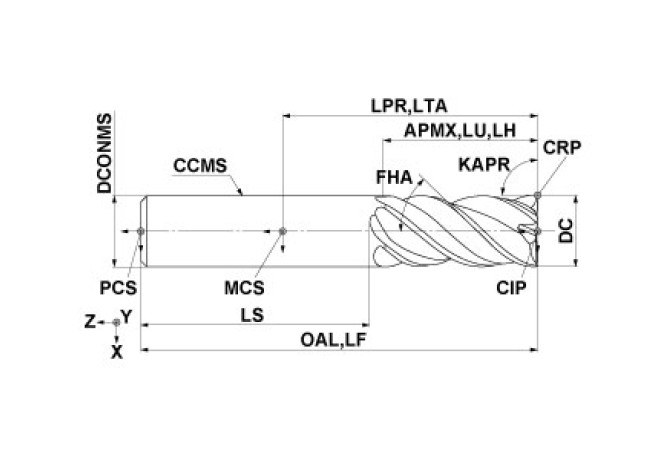

APMX Depth of cut maximum

41.91 mm

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

AlCrN

COMPC Company code

MI - Mitsubishi Materials

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

12.7 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2024

DIN

ZYL05000125

FamilyProducts

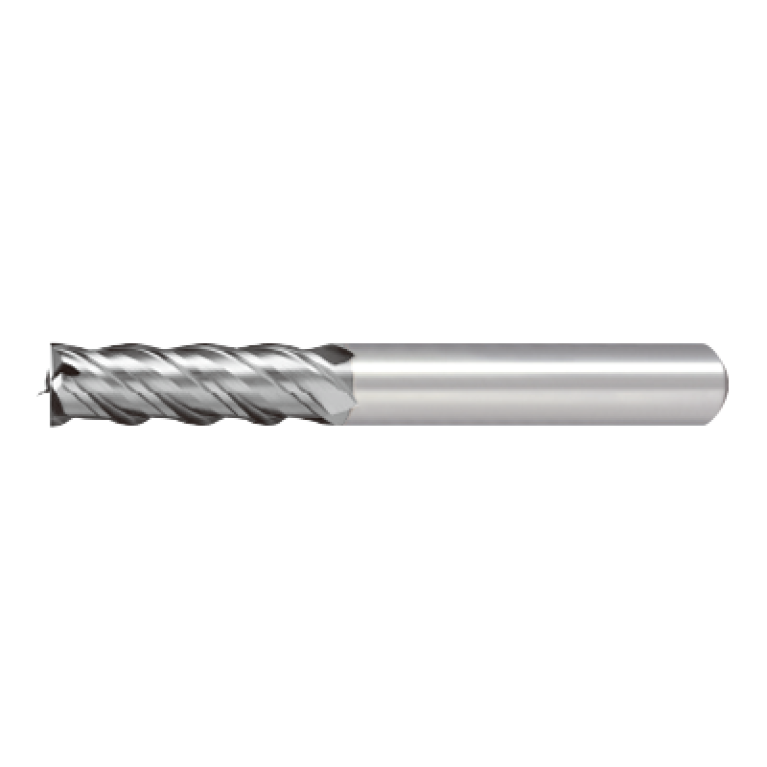

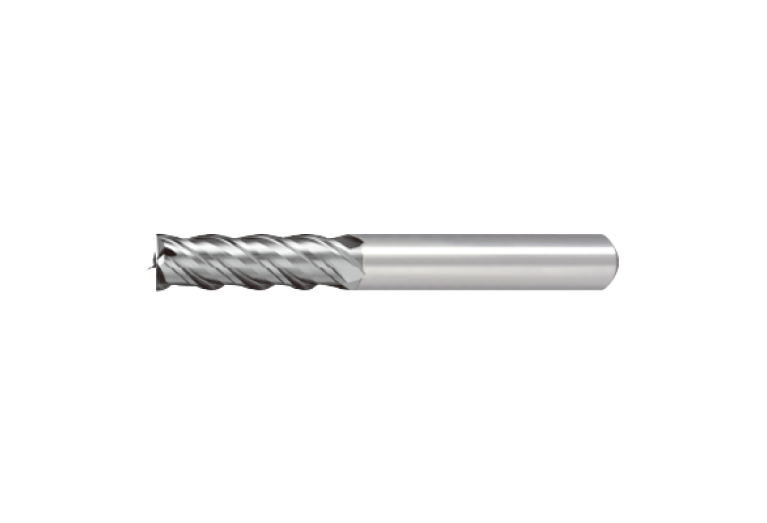

Carbide End mill, Semi-long cut length, 4 flute, Irregular helix flutes

FHA Flute helix angle

40 Degree

FHH Flute helix hand

R - Hand of helix right

HAND Cutting direction

R - Right

ID Technical product number

690970

Interface codes

J6 / J61

ISO

ZYL01R5000h$06

ISYC Subclass

303-02 - Centre cutting end mill

LF Functional length

101.6 mm

LH Head length

41.91 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

2 Inch

LOC-03 CZCMS Connection size code

0500

LOC-03 DCONMS Diameter

12.7 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03 ISO

ZYL01R5000h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL05000125

LPR Protruding length

69.85 mm

LS Shank length

59.69 mm

LU Usable length

41.91 mm

Name Identifying order number

VQJHVD1/2

OAL Overall length

101.6 mm

TCDCONMS ISO-tolerance class shank diameter

Working process

FPL - Face milling

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
