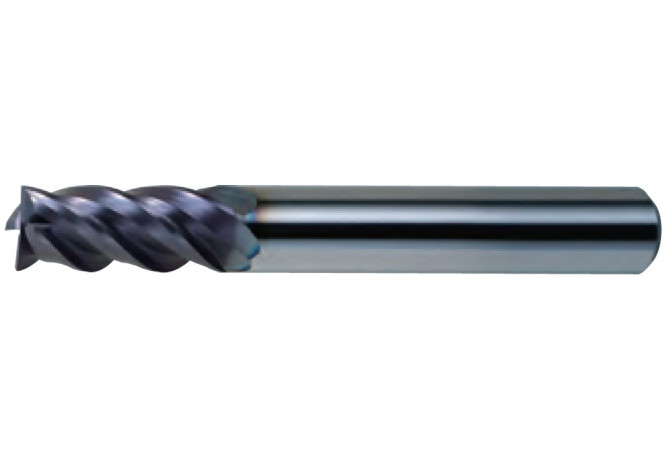

Главная Каталог продукции Toolunited 15 303-02 - Centre cutting end mill VFMHVD0500

VFMHVD0500

Артикул: 526475

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

13 mm

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

COMPC Company code

MI - Mitsubishi Materials

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

5 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

DIN

ZYL00600105

F71 Number of corner designs

FamilyProducts

IMPACT MIRACLE vibration control end mill

FHA Flute helix angle

43 Degree

FHH Flute helix hand

R - Hand of helix right

HAND Cutting direction

R - Right

ID Technical product number

526475

Interface codes

J6 /

ISYC Subclass

303-02 - Centre cutting end mill

LF Functional length

50 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0060

LOC-03 DCONMS Diameter

6 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00600105

Materials

P,M,K,S,H

Name Identifying order number

VFMHVD0500

OAL Overall length

50 mm

TCDCONMS ISO-tolerance class shank diameter

Working process

No working processes available

ZEFP Peripheral effective cutting edge count
