Главная Каталог продукции Toolunited 15 303-02 - Centre cutting end mill VED160L12.0R15-04S10 AH725

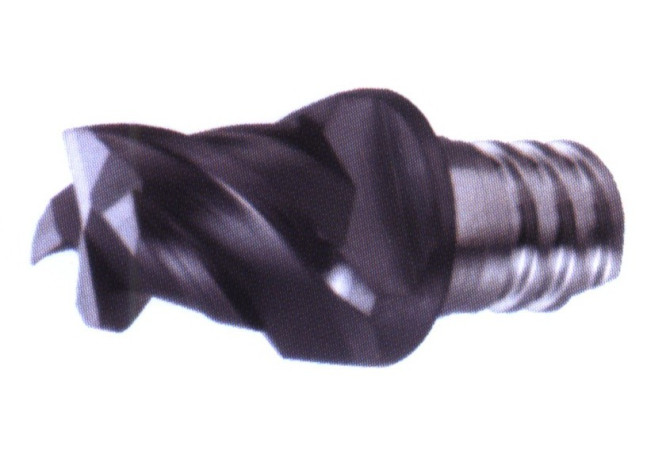

VED160L12.0R15-04S10 AH725

Артикул: VED160L12.0R15-04S10 AH725

В наличии

В корзину

Описание

Характеристики

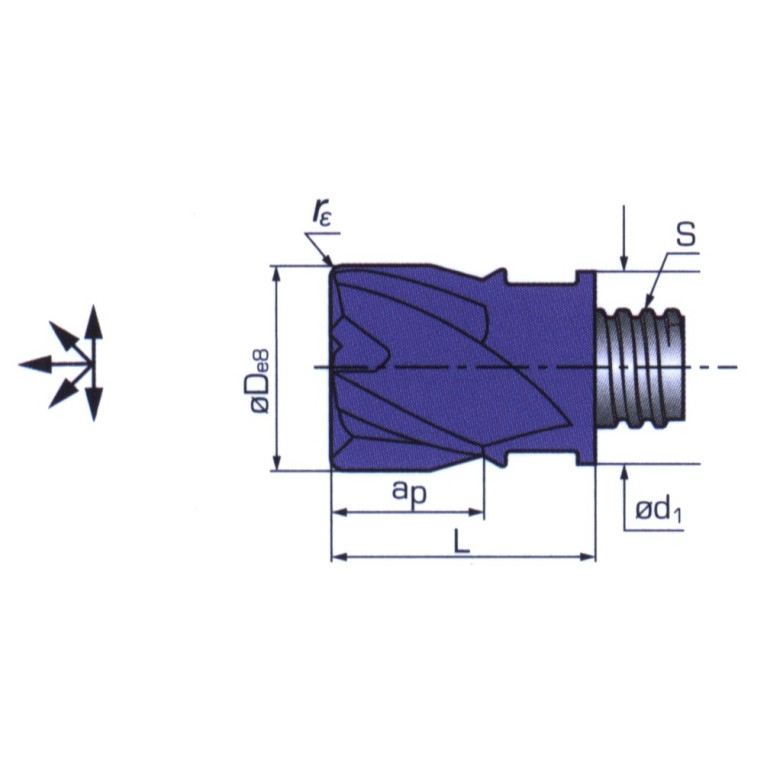

APMX Depth of cut maximum

12 mm

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

TT - Tungaloy

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

16 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

3/1/2011

DIN

TT-S10

DN Neck diameter

15.3 mm

F71 Number of corner designs

FamilyProducts

milling head Tungmeister-VED/VEE

FHA Flute helix angle

30 Degree

GRDMFG Grade manufacturers designation

AH725

Interface codes

J6 /

ISYC Subclass

303-02 - Centre cutting end mill

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCUMS Unit base

0 Metric

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

TT-S10

LPR Protruding length

20.5 mm

Materials

P,M,K,N,H

MILTTY Mill tool type ISO

J - Face and side and mill (one more then one indexable insert pro cutting edeg) 90°

Name Identifying order number

VED160L12.0R15-04S10 AH725

RE Corner radius

1.5 mm

Working process

No working processes available

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count

ZNC Cutting edge centre count
