Главная Каталог продукции Toolunited 15 303-02 - Centre cutting end mill VBB100L10.0-BG-02S06 AH750

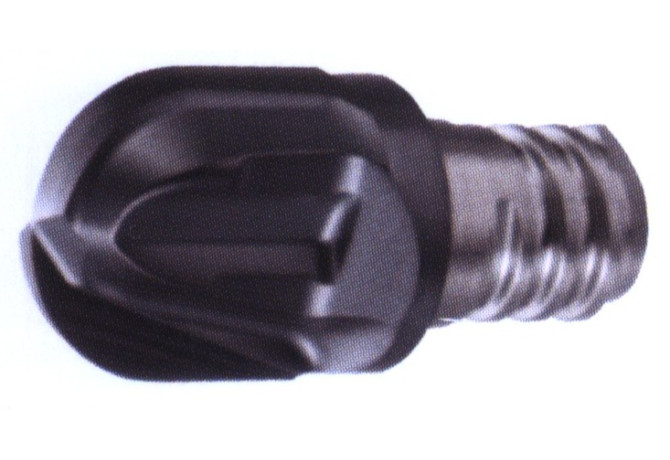

VBB100L10.0-BG-02S06 AH750

Артикул: VBB100L10.0-BG-02S06 AH750

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

10 mm

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

TT - Tungaloy

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

10 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

3/1/2011

DIN

TT-S06

DN Neck diameter

9.6 mm

F71 Number of corner designs

FamilyProducts

milling head Tungmeister-VBB-BG

FHA Flute helix angle

0 Degree

GRDMFG Grade manufacturers designation

AH750

Interface codes

J6 /

ISYC Subclass

303-02 - Centre cutting end mill

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCUMS Unit base

0 Metric

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

TT-S06

LPR Protruding length

12.4 mm

Materials

P,M,K,N,H

MILTTY Mill tool type ISO

L - Face and side end mill with ball nose (more then one indexable insert pro cutting edge) 90°

Name Identifying order number

VBB100L10.0-BG-02S06 AH750

Working process

No working processes available

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count

ZNC Cutting edge centre count
