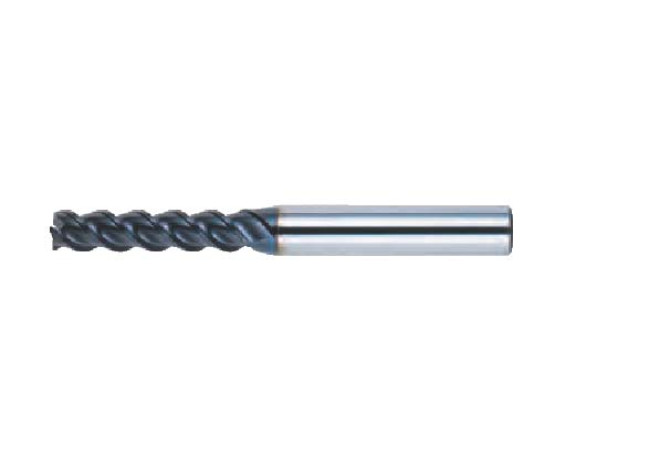

Главная Каталог продукции Toolunited 15 303-02 - Centre cutting end mill VALHD0500

VALHD0500

Артикул: VALHD0500

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

15 mm

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

COMPC Company code

MI - Mitsubishi Materials

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

5 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

DIN

ZYL00800105

F71 Number of corner designs

FamilyProducts

End mill,High Helix,Long cut length,3-4 flute

FHA Flute helix angle

45 Degree

FHH Flute helix hand

R - Hand of helix right

GAMF Rake angle radial

45 Degree

GAMP Rake angle axial

0 Degree

GRDMFG Grade manufacturers designation

KHA S

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

303-02 - Centre cutting end mill

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0080

LOC-03 DCONMS Diameter

8 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00800105

Materials

P,M

Name Identifying order number

VALHD0500

OAL Overall length

75 mm

Working process

FEC - Square shoulder milling,FNU - Groove milling

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count

ZNC Cutting edge centre count
