Главная Каталог продукции Toolunited 15 303-02 - Centre cutting end mill SCM470-1000Z08R-F0020HA-HC619

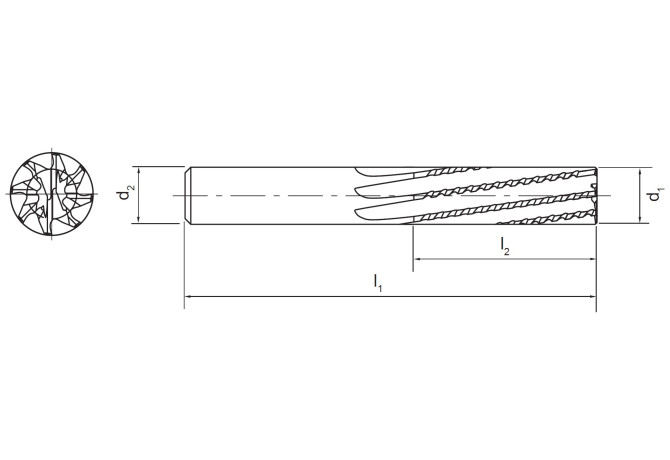

SCM470-1000Z08R-F0020HA-HC619

SCM470-1000Z08R-F0020HA-HC619 SCM470-1000Z08R-F0020HA-HC619

SCM470-1000Z08R-F0020HA-HC619

Mapal
Артикул: 30402696
В наличии
В корзину
Описание
Характеристики
APMX Depth of cut maximum
32 mm
BMC Body material code
H - Solid carbide
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating / Покрытие
Diamant
COMPC Company code
MP - Mapal
CXSC Coolant exit style code
0 - Without coolant exit
DC Cutting diameter
10 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
1/10/2017
DIN
ZYL01000105
F71 Number of corner designs
1
FamilyProducts
SCM47 OptiMill-Composite-Speed
FHA Flute helix angle
8 Degree
FHH Flute helix hand
L - Hand of helix left
GAMF Rake angle radial
-8 Degree
GRDMFG Grade manufacturers designation
HC619
HAND Cutting direction
R - Right
ID Technical product number
30402696
Interface codes
J6 /
ISYC Subclass
303-02 - Centre cutting end mill
LF Functional length
72 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0100
LOC-03 DCONMS Diameter
10 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01000105
Name Identifying order number
SCM470-1000Z08R-F0020HA-HC619
OAL Overall length
72 mm
Working process
No working processes available
ZEFF Face effective cutting edge count
8
ZEFP Peripheral effective cutting edge count
8
ZNC Cutting edge centre count
2
