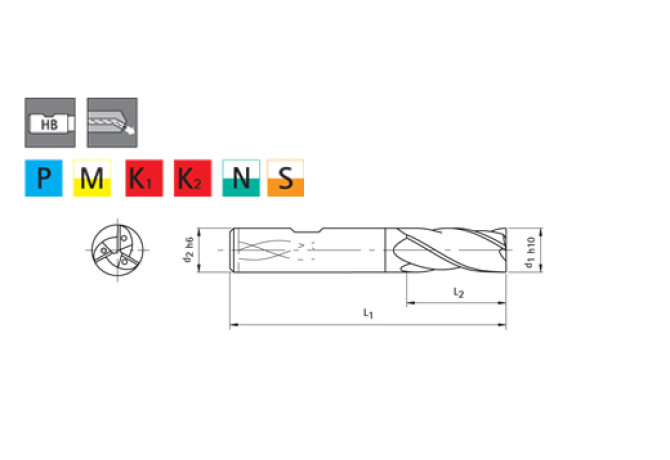

Главная Каталог продукции Toolunited 15 303-02 - Centre cutting end mill SCM141-1400Z03R-S-HB-HP214

SCM141-1400Z03R-S-HB-HP214

Артикул: 30393559

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

22 mm

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

4 - With Coolant entry, axial on hole circle

COATN Coating / Покрытие

TiAlN-Beschichtung

COMPC Company code

MP - Mapal

CXSC Coolant exit style code

4 - With Coolant exit, axial on hole circle

DC Cutting diameter

14 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

7/2/2012

DIN

ZYL01401015

F71 Number of corner designs

FamilyProducts

OptiMill-Uni endmill SCM14

FHA Flute helix angle

30 Degree

FHH Flute helix hand

R - Hand of helix right

GAMF Rake angle radial

30 Degree

GRDMFG Grade manufacturers designation

HP214

HAND Cutting direction

R - Right

ID Technical product number

30393559

Interface codes

J6 /

ISYC Subclass

303-02 - Centre cutting end mill

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0140

LOC-03 DCONMS Diameter

14 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01401015

LS Shank length

45 mm

MILTTY Mill tool type ISO

J - Face and side and mill (one more then one indexable insert pro cutting edeg) 90°

Name Identifying order number

SCM141-1400Z03R-S-HB-HP214

OAL Overall length

83 mm

STDLET Standard letter to the standard number

STDNO Standard

DIN6527

TCDCONMS ISO-tolerance class shank diameter

Working process

FEC - Square shoulder milling,FNU - Groove milling

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count

ZNC Cutting edge centre count
