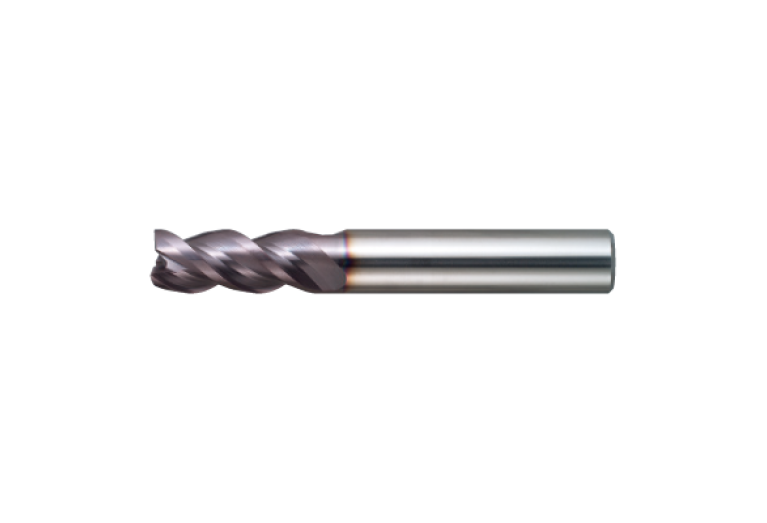

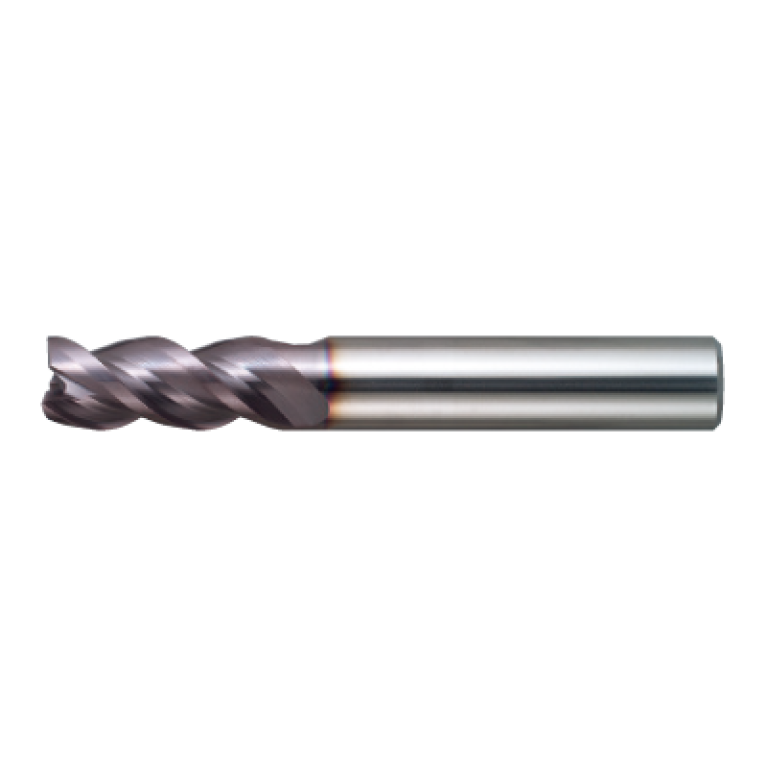

Главная Каталог продукции Toolunited 15 303-02 - Centre cutting end mill MSMHZDD3/4

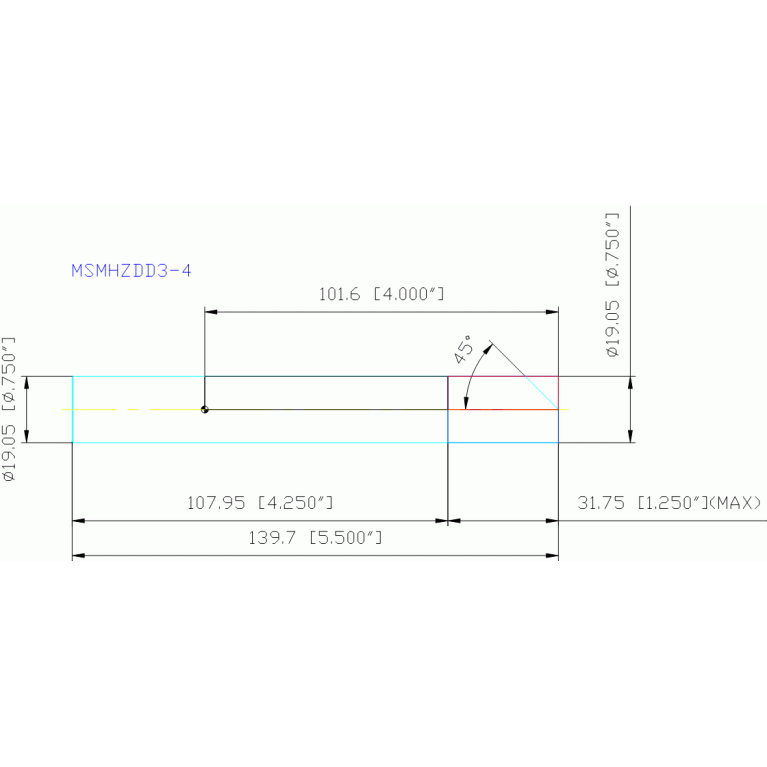

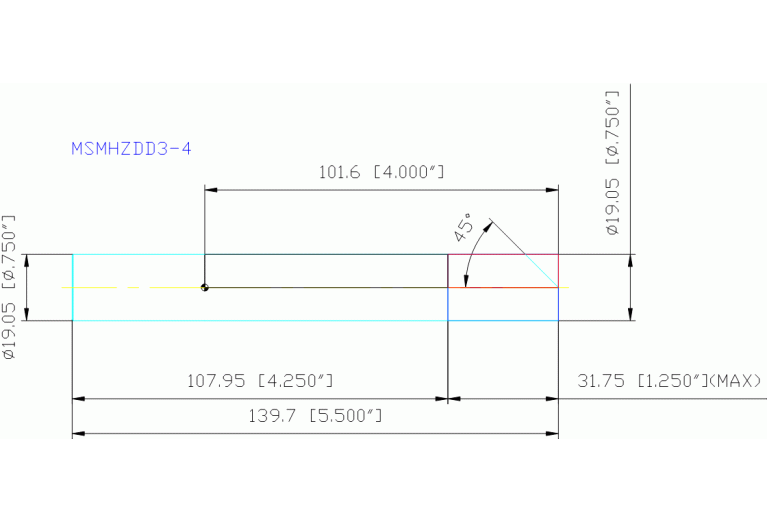

MSMHZDD3/4

Артикул: 494514

В наличии

В корзину

Описание

Характеристики

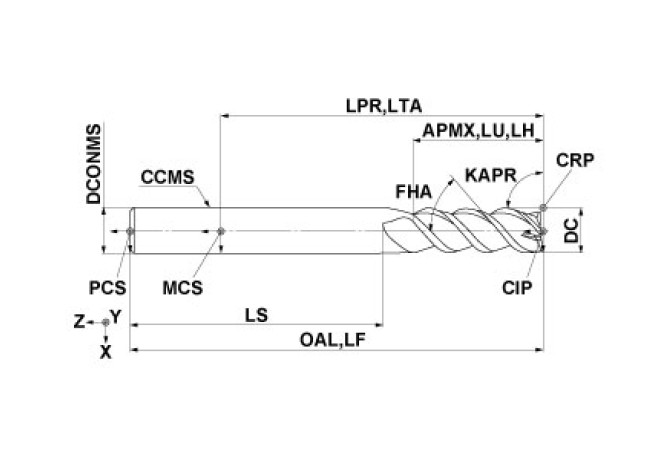

APMX Depth of cut maximum

31.75 mm

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

AlTiN

COMPC Company code

MI - Mitsubishi Materials

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

19.05 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2024

DIN

ZYL07500125

FamilyProducts

Carbide End mill, Medium cut length, 3 flute for drilling and slotting

FHA Flute helix angle

45 Degree

FHH Flute helix hand

R - Hand of helix right

HAND Cutting direction

R - Right

ID Technical product number

494514

Interface codes

J6 / J61

ISO

ZYL01R7500h$06

ISYC Subclass

303-02 - Centre cutting end mill

LF Functional length

139.7 mm

LH Head length

31.75 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

2 Inch

LOC-03 CZCMS Connection size code

0750

LOC-03 DCONMS Diameter

19.05 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03 ISO

ZYL01R7500h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL07500125

LPR Protruding length

101.6 mm

LS Shank length

107.95 mm

LU Usable length

31.75 mm

Name Identifying order number

MSMHZDD3/4

OAL Overall length

139.7 mm

TCDCONMS ISO-tolerance class shank diameter

Working process

FPL - Face milling

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
