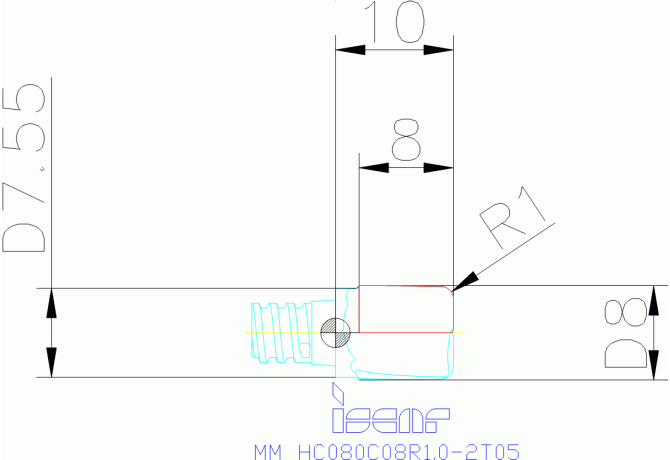

MM HC080C08R1.0-2T05 IC903

Артикул: 5606433

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

7.7 mm

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

TiAlN

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

8 mm

DCP Data chip provision

0 - Without data chip

DIN

SAI00500185

F71 Number of corner designs

FamilyProducts

Interchangeable Solid Carbide Slot Drill Milling Heads with Two 10° Helix Flutes

FHA Flute helix angle

10 Degree

FHH Flute helix hand

R - Hand of helix right

GRDMFG Grade manufacturers designation

IC903

HAND Cutting direction

R - Right

ID Technical product number

5606433

Interface codes

J6 / J61

ISO

SAI01C0050$$$$

ISYC Subclass

303-02 - Centre cutting end mill

LF Functional length

10 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

SAI Screw mounting ISCAR

LOC-03 CCUMS Connection code unit base

8 non-dimensional size

LOC-03 CZCMS Connection size code

0050

LOC-03 DCONMS Diameter

7.6 mm

LOC-03 ISO

SAI01C0050$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SAI00500185

Name Identifying order number

MM HC080C08R1.0-2T05 IC903

RE Corner radius

1 mm

RMPX Ramping angle maximum

90 Degree

THSZMS Connection thread nominal size machine side

T05

Working process

No working processes available

WT Weight of item

0.01 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
