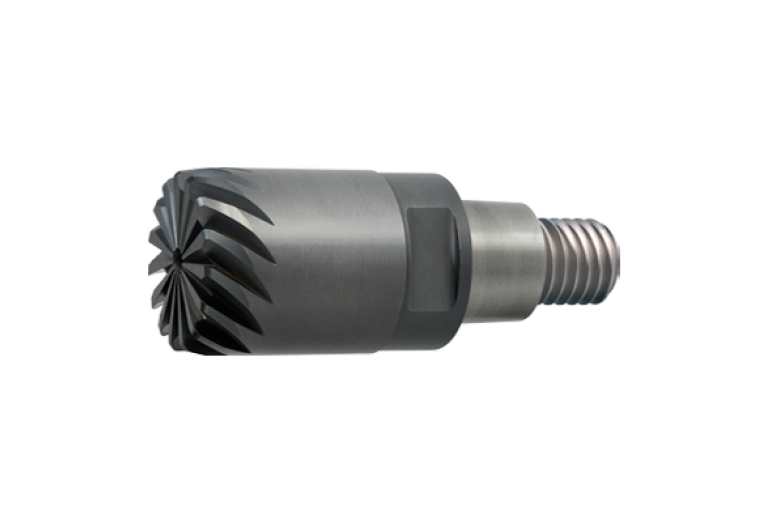

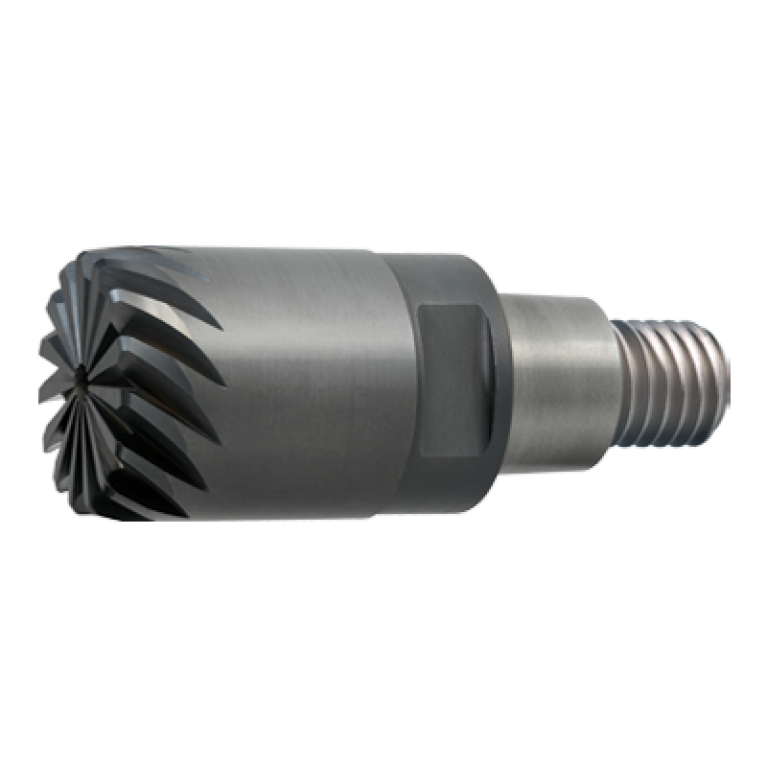

Главная Каталог продукции Toolunited 15 303-02 - Centre cutting end mill IMX20C15T190R05T080C EP7020

IMX20C15T190R05T080C EP7020

IMX20C15T190R05T080C EP7020 IMX20C15T190R05T080C EP7020 IMX20C15T190R05T080C EP7020 IMX20C15T190R05T080C EP7020

IMX20C15T190R05T080C EP7020

Mitsubishi Materials
Артикул: 10520895
В наличии
В корзину
Описание
Характеристики

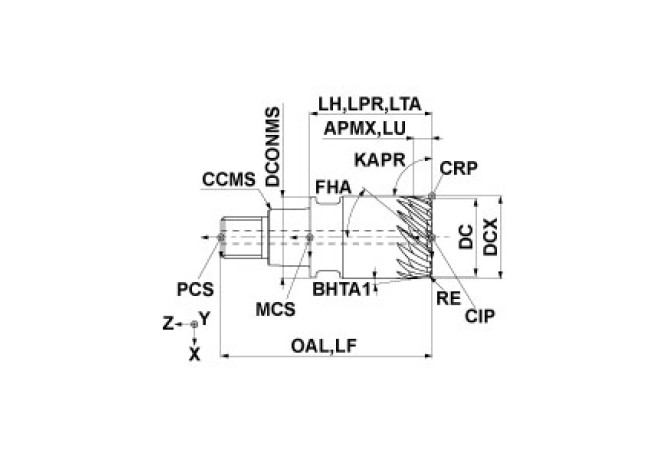

APMX Depth of cut maximum
3.56 mm
BMC Body material code
H - Solid carbide
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
MI - Mitsubishi Materials
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial

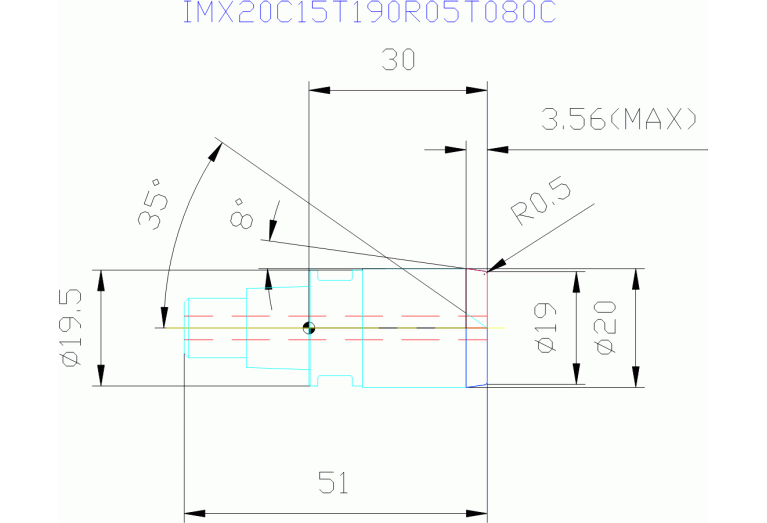

DC Cutting diameter
20 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
4/1/2022
DIN
SAM02000115
F71 Number of corner designs
1
FamilyProducts
solid end mills
FHA Flute helix angle
35 Degree
FHH Flute helix hand
R - Hand of helix right
GRDMFG Grade manufacturers designation
EP7020
HAND Cutting direction
R - Right
ID Technical product number
10520895
Interface codes
J6 /
ISYC Subclass
303-02 - Centre cutting end mill
LH Head length
30 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
SAM Screw mounting MAPAL
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0200
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SAM02000115
LPR Protruding length
30 mm
MILTTY Mill tool type ISO
H - Slotting end mill (one or more indexable insert pro cutting edge) 90°
Name Identifying order number
IMX20C15T190R05T080C EP7020
RE Corner radius
0.5 mm
Working process
No working processes available
ZEFF Face effective cutting edge count
15
ZEFP Peripheral effective cutting edge count
15
