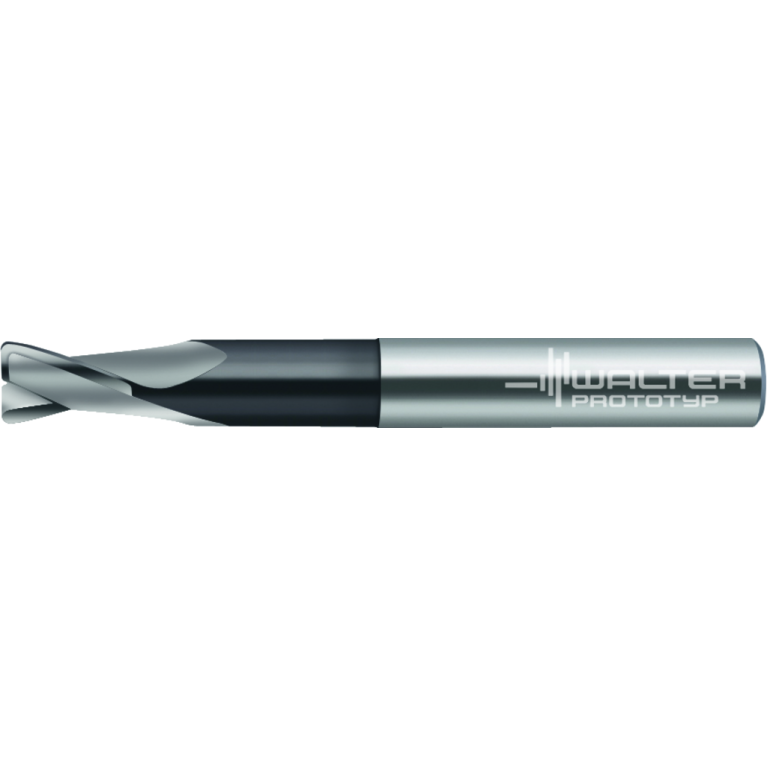

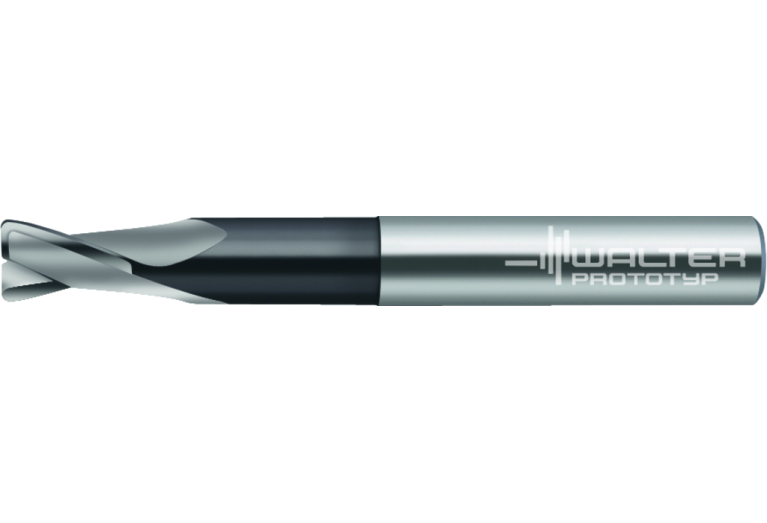

Главная Каталог продукции Toolunited 15 303-02 - Centre cutting end mill H6028818-16-2

H6028818-16-2

Артикул: 5083426

В наличии

В корзину

Описание

Характеристики

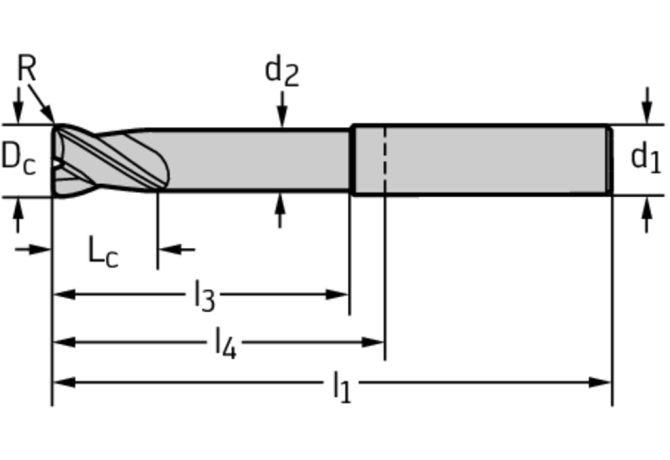

APMX Depth of cut maximum

20 mm

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

W - Walter

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

16 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

ZYL01600105

DN Neck diameter

15.2 mm

F71 Number of corner designs

FamilyProducts

Solid carbide shoulder/slot mills H6028818

FHA Flute helix angle

25 Degree

FHH Flute helix hand

R - Hand of helix right

GAMF Rake angle radial

13.5 Degree

GAMP Rake angle axial

13.5 Degree

GRDMFG Grade manufacturers designation

TAX

HAND Cutting direction

R - Right

ID Technical product number

5083426

Interface codes

J6 / J61

ISO

ZYL01G1600h$06

ISYC Subclass

303-02 - Centre cutting end mill

LF Functional length

115 mm

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

ZYL cylindrical shank

LOC-03 CCUMS Unit base

0 Metric

LOC-03 CZCMS Size code

0160

LOC-03 DCONMS Diameter

16 mm

LOC-03 TCDCONCDMS Tolerance class coded

h$06

LOC-03 ISO

ZYL01G1600h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01600105

LPR Protruding length

67 mm

LS Shank length

48 mm

Name Identifying order number

H6028818-16-2

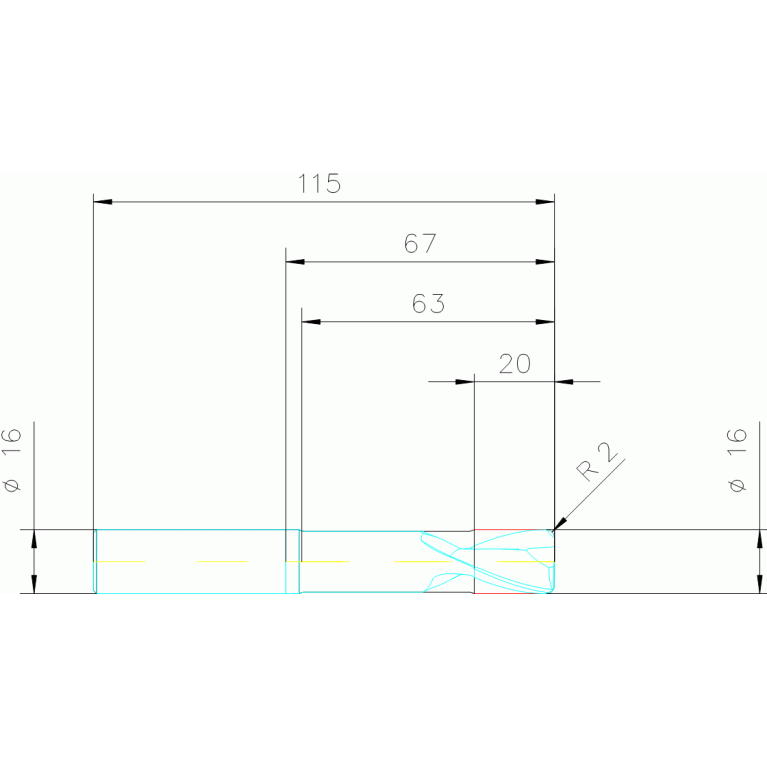

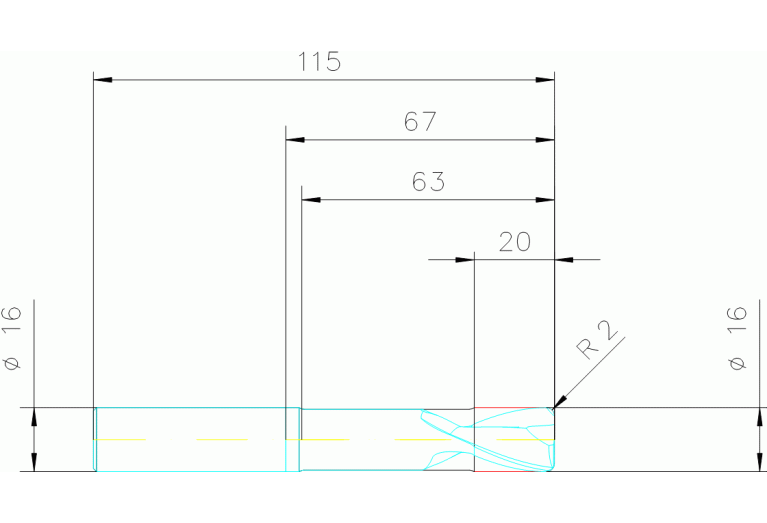

OAL Overall length

115 mm

RE Corner radius

2 mm

RMPX Ramping angle maximum

30 Degree

RPMX Rotational speed maximum

80000 1/min

STDLET Standard letter to the standard number

STDNO Standard

P-NORM L

TCDCONMS ISO-tolerance class shank diameter

Working process

BVB - Drilling,FEC - Square shoulder milling,FFO - Die milling,FNU - Groove milling,FPL - Face milling,FSE - Counter-sinking,FZI - Circular milling

WT Weight of item

0.291 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
