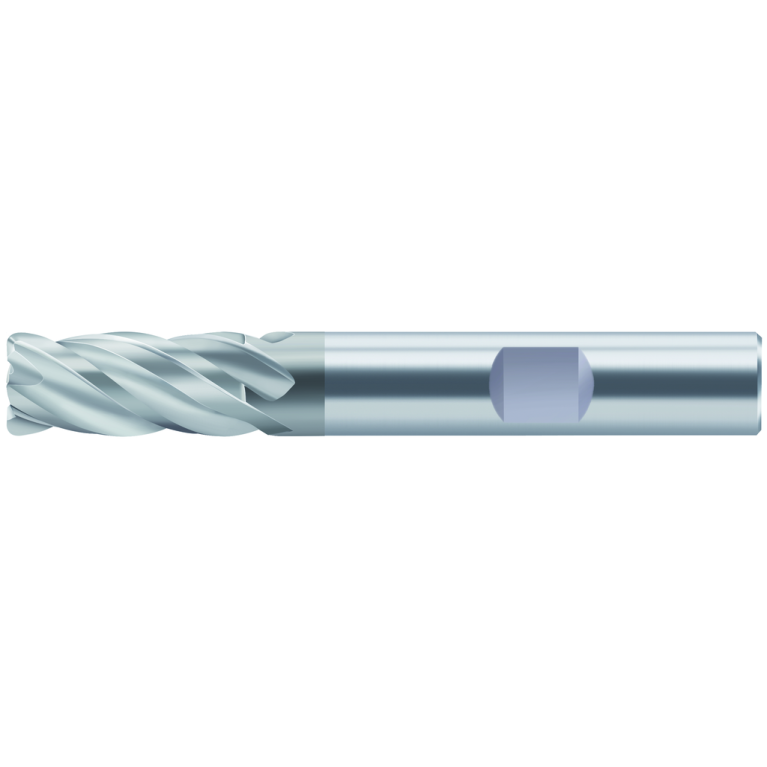

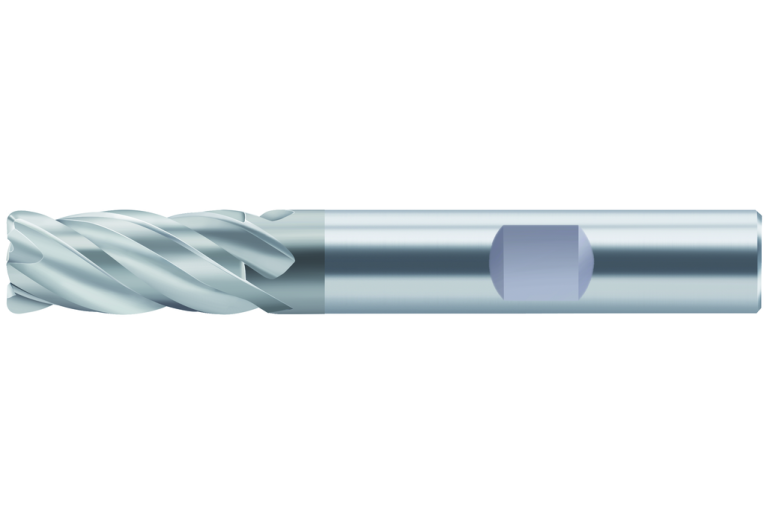

Главная Каталог продукции Toolunited 15 303-02 - Centre cutting end mill H2134217-14

H2134217-14

Артикул: 6231747

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

26 mm

BMC Body material code

H - Solid carbide

CHW Corner chamfer width

0.15 mm

CNSC Coolant entry style code

4 - With Coolant entry, axial on hole circle

COATN Coating / Покрытие

TiAlN + TiAI

COMPC Company code

W - Walter

CXSC Coolant exit style code

4 - With Coolant exit, axial on hole circle

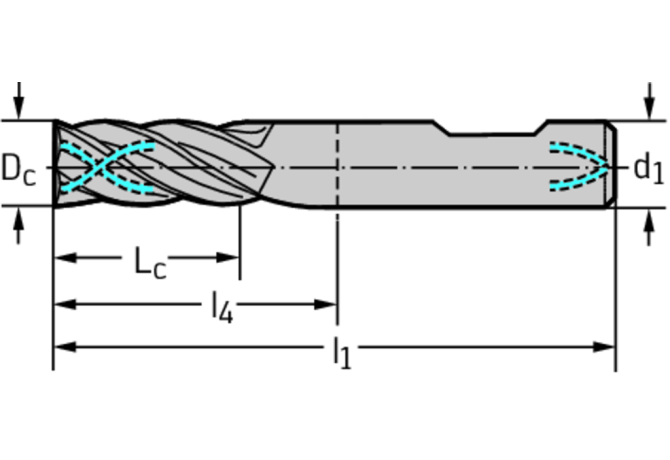

DC Cutting diameter

14 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

ZYL01401015

F71 Number of corner designs

FamilyProducts

Solid carbide shoulder/slot mills H2134217

FHA Flute helix angle

38 Degree

FHH Flute helix hand

R - Hand of helix right

GAMF Rake angle radial

13.5 Degree

GAMP Rake angle axial

4 Degree

GRDMFG Grade manufacturers designation

TAA

HAND Cutting direction

R - Right

ID Technical product number

6231747

Interface codes

J6 / J61

ISO

ZYL10G1400h$05

ISYC Subclass

303-02 - Centre cutting end mill

KCH Corner chamfer angle

45 Degree

LF Functional length

60.5 mm

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

ZYL cylindrical shank

LOC-03 CCUMS Unit base

1 Metric with coolant

LOC-03 CZCMS Size code

0140

LOC-03 DCONMS Diameter

14 mm

LOC-03 TCDCONCDMS Tolerance class coded

h$05

LOC-03 ISO

ZYL10G1400h$05

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01401015

LPR Protruding length

38 mm

LS Shank length

45 mm

Materials

M,S

Name Identifying order number

H2134217-14

OAL Overall length

83 mm

RMPX Ramping angle maximum

6 Degree

RPMX Rotational speed maximum

80000 1/min

STDLET Standard letter to the standard number

STDNO Standard

DIN 6527 L

TCDCONMS ISO-tolerance class shank diameter

Working process

FEC - Square shoulder milling,FNU - Groove milling,FPL - Face milling,FSE - Counter-sinking,FZI - Circular milling

WT Weight of item

0.176 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
