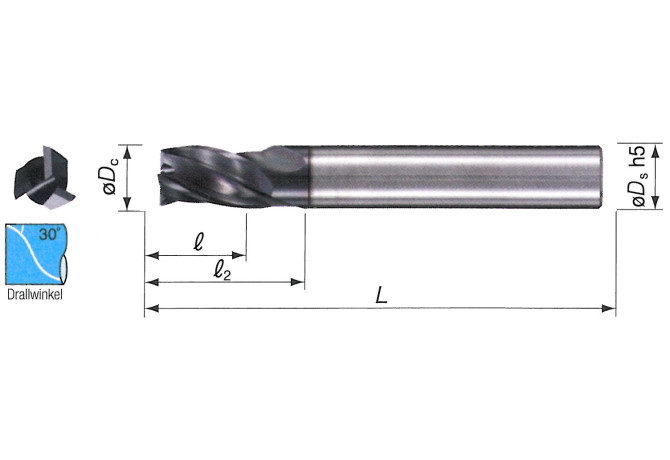

GSX 30700C-1.5D

Артикул: GSX 30700C-1.5D

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

11 mm

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

SU - Sumitomo

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

7 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

3/3/2012

DIN

ZYL00800105

F71 Number of corner designs

FamilyProducts

end mill GSX 30000C-1.5D

FHA Flute helix angle

30 Degree

FHH Flute helix hand

R - Hand of helix right

GRDMFG Grade manufacturers designation

ACF20

HAND Cutting direction

R - Right

ID Technical product number

GSX 30700C-1.5D

Interface codes

J6 /

ISYC Subclass

303-02 - Centre cutting end mill

LH Head length

13 mm

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

ZYL cylindrical shank

LOC-03 CCUMS Unit base

0 Metric

LOC-03 CZCMS Size code

0080

LOC-03 DCONMS Diameter

8 mm

LOC-03 TCDCONCDMS Tolerance class coded

h$05

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00800105

LPR Protruding length

13 mm

LS Shank length

47 mm

Materials

P,M,K,S,H

MILTTY Mill tool type ISO

H - Slotting end mill (one or more indexable insert pro cutting edge) 90°

Name Identifying order number

GSX 30700C-1.5D

OAL Overall length

60 mm

RPMX Rotational speed maximum

4000 1/min

TCDCONMS ISO-tolerance class shank diameter

Working process

FEC - Square shoulder milling,FNU - Groove milling

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count

ZNC Cutting edge centre count
